Track Sensor Setup

Set Track Sensor Source

1.
   A63096-UN-21AUG08

   Menu Button


   A63110-UN-16OCT08

   Setup Icon


   A63120-UN-20AUG08

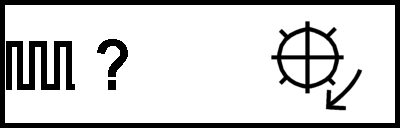

   Track Sensor - Drive Wheel Shown


   A63099-UN-21AUG08

   Increase Button


   A63108-UN-21AUG08

   Decrease Button

   Select Menu button until setup icon appears. Select Confirm button.

---




2. Select Menu button until track sensor screen is displayed. Select Confirm button.

3. Select Increase or Decrease buttons to toggle between drive wheel or radar track sensor. Select Confirm button.

Calibrate Track Sensor

1.
   A63096-UN-21AUG08

   Menu Button


   A63110-UN-16OCT08

   Setup Icon


   A63122-UN-20AUG08

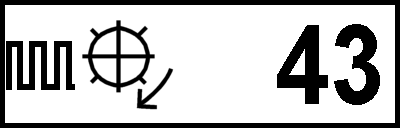

   Track Sensor Screen


   A63098-UN-29OCT08

   Clear Button


   A63099-UN-21AUG08

   Increase Button


   A63108-UN-21AUG08

   Decrease Button

   Select Menu button until setup icon appears. Select Confirm button.

---




2. Select Menu button until track sensor screen is displayed. Select Confirm button.

3. Select Clear button to begin calibration.

4. Drive tractor exactly 100 m. Select Confirm button. Pulses are shown on screen.

5. Select Increase or Decrease buttons to manually adjust track sensor. Select Confirm button.
