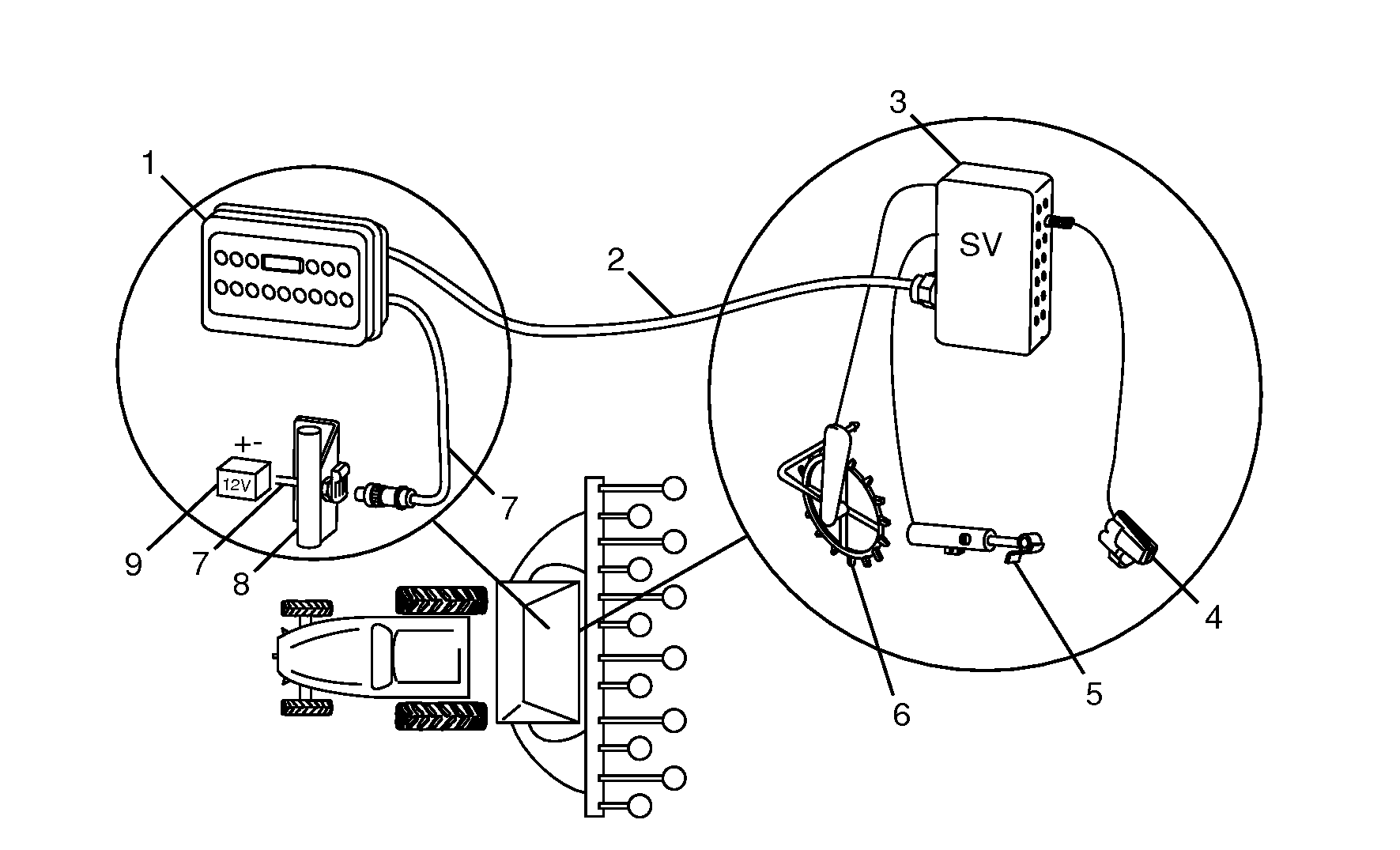

Components of the Electronic Seed Control System

A63141-UN-25AUG08

1 - Monitor

2 - Connection Lead With Plug

3 - Controller

4 - Solenoid Shut-Off Valve

5 - Sensor On Hydraulic Cylinder Of Drive Wheel

6 - Drive Wheel With Sensor

7 - Battery Lead

8 - Mounting Bracket

9 - Battery
