Opening Seed Hopper Cover

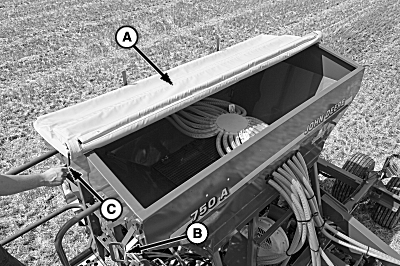

A63547-UN-28OCT08

A - Cover

B - Handle

C - Handle

Cover (A) is easy to open or close. Always keep it closed when seed hopper filling is not required.

Release cover (A) with handle (B). Rotate handle (C) to open cover.

To close cover, rotate handle (B) and retain closed with handle (B).
