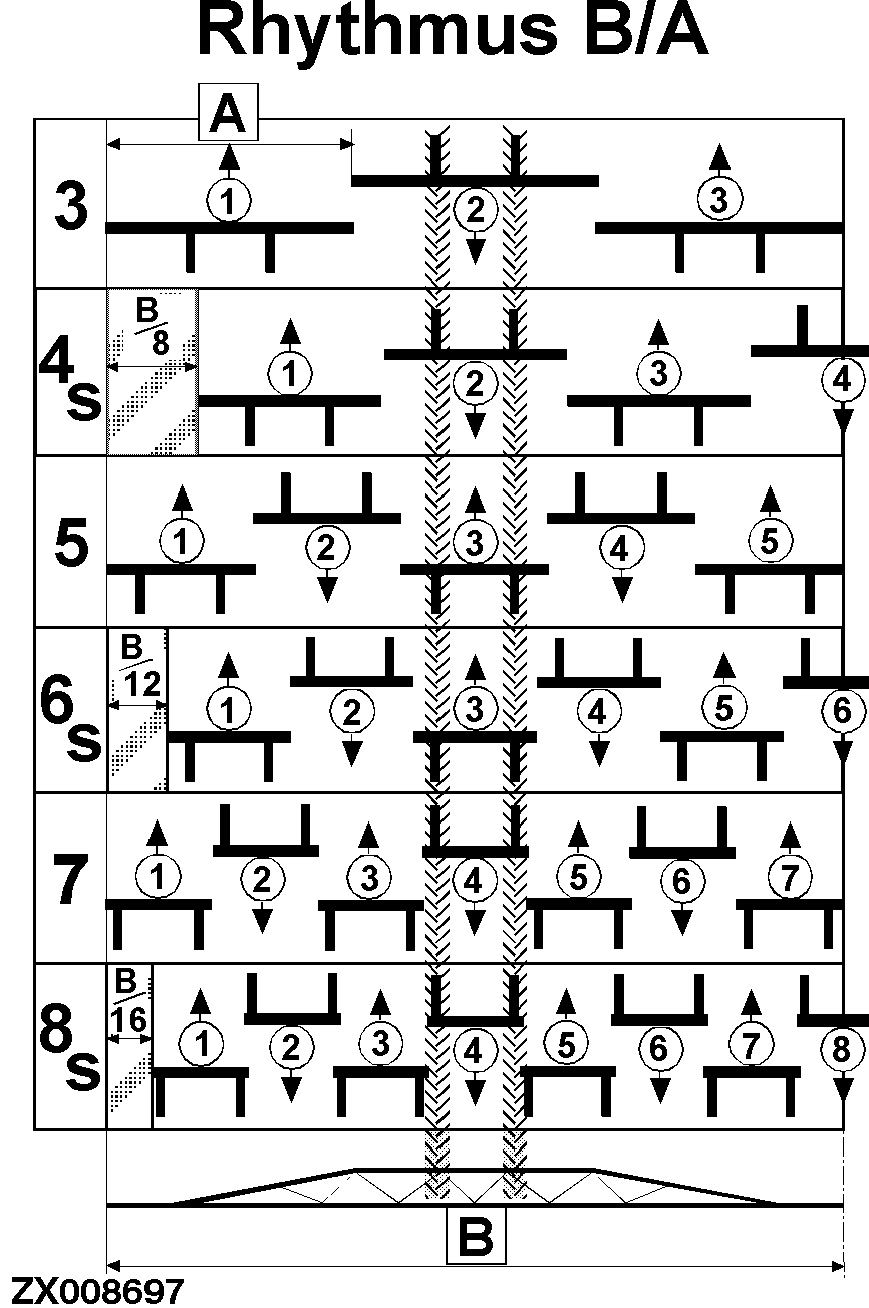

Examples of Possible Tramlining Rhythms

ZX008697-UN-16DEC96

A - Sowing

B - Spraying/fertilizing

IMPORTANT: Prior to initial operation, check to ensure that the tramlines will in fact be produced at a distance equal to the tread width of the tractor used for subsequent spraying/fertilizing. The corresponding openers must be shut off so that they cannot deliver seed.

NOTE: Refer to Signus Seed Drill Monitor System section.
