Adjusting Press and Closing Wheel Down Force

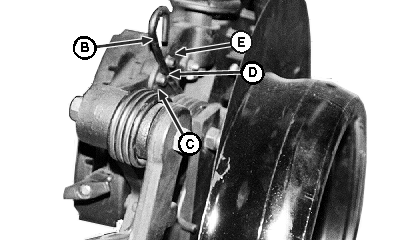

N49815-UN-21APR98

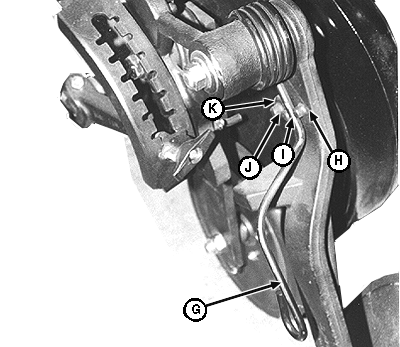

N49814-UN-16APR98

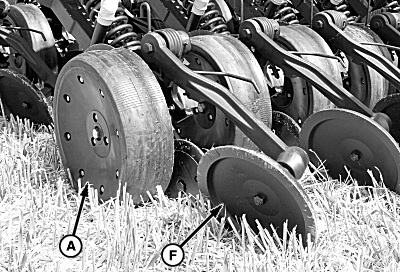

A63551-UN-28OCT08

A - Press Wheel

B - Adjustment Spring

C - MAX Down Force-Press Wheel

D - MED Down Force-Press Wheel

E - MIN Down Force-Press Wheel

F - Closing Wheel

G - Adjustment Spring

H - HEAVIEST Down Force-Closing Wheel

I - HEAVY Down Force-Closing Wheel

J - MED Down Force-Closing Wheel

K - LIGHT Down Force-Closing Wheel

CAUTION: Always close opener lock-up valve before servicing machine. If a hydraulic failure should occur while you are under the machine, the openers would fall rapidly and cause severe injury or death to you or others.

Press Wheel (A)

Press wheel down force is adjustable by placing spring (B) using one-of-three settings (C, D, and E) based on soil conditions and seed depth. Maintain uniform down force on all press wheels for best seed-to-soil contact, which promotes germination and optimum emergence.

• MAXIMUM DOWN FORCE (C) is used for deep seeding depth.
• MEDIUM DOWN FORCE (D) is used for moderate seeding depth.
• MINIMUM DOWN FORCE (E) is used for shallow seeding depth or to reduce mud build-up from wheels when operating in wet conditions.

Spring pressure should be removed only if mud builds up on press wheels.

Closing Wheel (F)

N49815-UN-21APR98

N49814-UN-16APR98

A63551-UN-28OCT08

A - Press Wheel

B - Adjustment Spring

C - MAX Down Force-Press Wheel

D - MED Down Force-Press Wheel

E - MIN Down Force-Press Wheel

F - Closing Wheel

G - Adjustment Spring

H - HEAVIEST Down Force-Closing Wheel

I - HEAVY Down Force-Closing Wheel

J - MED Down Force-Closing Wheel

K - LIGHT Down Force-Closing Wheel

Adjust closing wheel down-pressure to close furrow and leave loose soil over the seed.

Use no more closing wheel down-pressure than required to close furrow.

Slow and/or erratic emergence can result if:

• Excessive closing wheel down-pressure causes seed zone compaction.
• A solid “ribbon” of soil is placed over the seed. This is generally caused by operating in wet soil conditions.
• Furrow is not closed.

Place closing wheel spring (G) in one-of-four setting positions (H, I, J, K), which best suits your soil type, and closes furrow without compacting soil.

• HEAVIEST FORCE (H)—Heaviest soil conditions.
• HEAVY DOWN FORCE (I)—Heavy wet soil.
• MEDIUM DOWN FORCE (J)—Most common soil types.
• LIGHT DOWN FORCE (K)—Light, loose or sandy soil.
