Adjust Mechanical Selective Control Valves
NOTE:

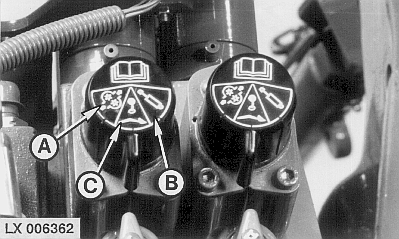

LX006362-UN-03JAN95
6000, 7000, 7020, and 7030 Series Tractors
A - Motor Position
B - Automatic Detent Position
C - Manual Detent Position
Do not use automatic detent position (B), if equipped.
|
Setting Control Valves |
|
|---|---|
|
Machine Operation |
Knob Position |
|
Openers (Active hydraulic down pressure) |
Motor Position (A) |
|
Blower |
Motor Position (A) |
|
Track Markers |
Motor Position (A) |
|
Wing Operation |
Manual Detent Position (C) |
RW21395-UN-18JUN92
6000, 7000, 7020, and 7030 Series Tractors

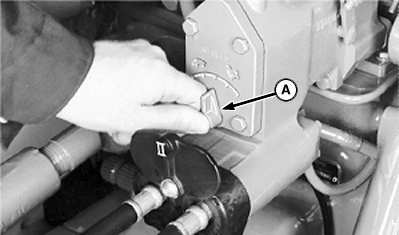

RW5885-UN-17DEC01
50—55 Series Tractors
A - Metering Valve
|
Setting Metering Valve |
|
|---|---|
|
Valve Position |
Machine Function |
|
FAST/RABBIT |
Blower |
|
FAST/RABBIT |
Openers and Track Markers |
|
SLOW/TORTOISE |
Wing Operation |
|
