Conditions for Use of Blower

The tractor must be fitted with the following equipment:

• Parallel operation:— Parallel operation of the SCVs is necessary to allow the opener pressure to be adjusted during sowing.
• Number of SCVs:— Suitable SCVs must be available for the selected hydraulic functions; it may be possible to couple similar functions together. Priority must be given to the oil supply for the blower.
• Special requirement for certain tractors:— Conversion plate LCB498853 must be fitted to all John Deere tractors that do not have load-sensing valves.

•

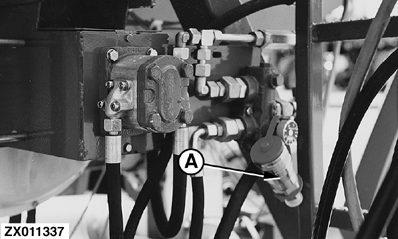

  ZX011337-UN-02JUN97

  A - Coupler

  Oil pressure in the blower return line must be kept as low as possible in order to prevent damage to the hydraulic pump. Return pressure must not exceed specifications.

  Item	Measurement	Specification
  Blower Return Hose	Maximum Pressure	1500 kPa (15 bar) (217 psi)

  A special coupler (A) is provided with the machine to be installed on the tractor. It is designed so return oil will be pressure-free.

  Item	Measurement	Specification
  Coupler Orifice	Diameter	12 mm (0.47 in.)

  Return oil should NOT be fed back to the tractor's SCV, but be returned directly to the filter and from there to the reservoir.

---
