Link Lengths

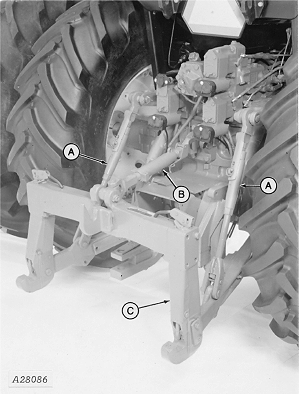

A28086-UN-13OCT88

A - Lift Links

B - Center Link

C - Quick-Coupler

IMPORTANT: For more safety, always use a quick-coupler to make attaching and detaching a one-man operation.

Set the lift links (A) as short as possible to provide maximum transport clearance.

Adjust the center link (B) until the quick-coupler (C) is vertical when in drilling position.
