Connecting Drill to Tractor

  1. CAUTION: To avoid serious injury to you or others from escaping hydraulic oil under pressure, relieve the pressure in the system by shutting off tractor and moving remote cylinder operating levers in both directions before attaching hoses to or detaching hoses from the breakaway couplers.

    Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

    NOTE: Refer to ADJUSTING METERING VALVES in Preparing the Tractor section to properly set the oil flow for each SCV function.

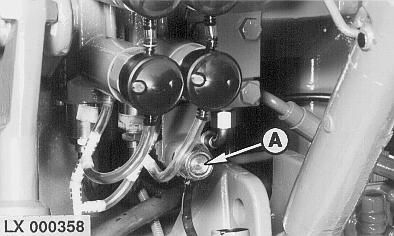

    LX000358
    LX000358-UN-02JAN95

    6000 Series tractors

    A - Tractor Coupler

    TRACTORS WITH ELECTRO/HYDRAULIC SCV’S: Leave engine running.

    TRACTORS WITH MECHANICAL SCV’S: Stop engine, turn key switch on.


  2. Place SCV levers in float position.

  3. Turn tractor off.

  4. IMPORTANT: Ensure connections are absolutely clean before connecting. Seal connections with dust caps whenever hoses are disconnected.

    Connect openers/markers hoses to SCV I.

  5. Connect wing fold hoses to SCV II.

  6. Connect blower hoses to SCV III.

  7. Connect warning light harness to the seven-pin connector.

  8. Connect monitor wiring harness.

  9. IMPORTANT: Ensure connections are clean before joining compressed air hoses. Seal connections with dust caps whenever hoses are disconnected. The drill is provided with a dual-line brake system. Do not use black coupler (A) when connecting compressed air hoses.

    On 4 and 6 m machine, connect hydraulic brake hose as follows:

    When using an hydraulic trailer brake, connect hydraulic hose to tractor coupler (A). Refer to tractor Operator's Manual.

  10. Disengage parking brake. See Transporting section.

  11. IMPORTANT: Ensure that the connections are clean before joining the compressed air hoses. Seal the connections with the dust caps whenever the hoses are disconnected.

    The drill is provided with a dual-line brake system. Do not use black coupler (A) when connecting compressed air hoses.

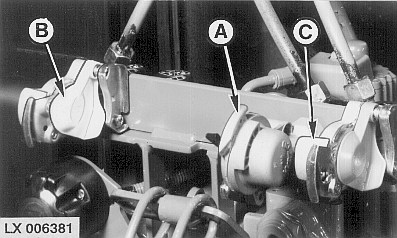

    LX006381
    LX006381-UN-03JAN95

    LX011674
    LX011674-UN-05OCT95

    A - Black (Single-Line Brake)

    B - Yellow (Dual-Line Brake)

    C - Red (Dual-Line Brake)

    On 4 and 6 m machine, connect air brake hoses as follows:

    When connecting the compressed air hoses to the tractor, first connect the brake hose to yellow coupler (B) and then the supply hose to red coupler (C). Refer to tractor Operator's Manual.


  12. Disengage parking brake (see Transporting section).

ZX,OM750A010189-19-20160122
