Transporting Drill

ZX018307-UN-04OCT99

ZX013897-UN-02DEC97

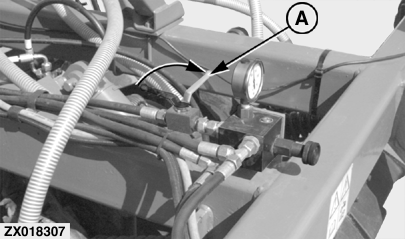

A - Shut-Off Valve

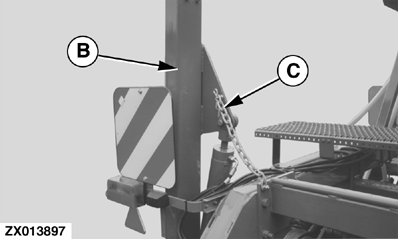

B - Markers

C - Safety Chain

CAUTION: Avoid injury or death due to run away drill. Do not exceed maximum transport speed allowed by local governmental regulations. Reduce speed considerably when traveling over rough surfaces. Do not exceed 16 km/h (10 mph) when transporting with grain.

Always use flashing warning lights on public roadway. Keep reflective materials clean and visible.

Transport only with recommended tractors. (See SPECIFICATIONS section.) Do not use pickup truck to transport.

1. Attach tractor to drill. (See ATTACHING AND DETACHING section.)

2. CAUTION: Avoid injury or death from electrocution. Do not fold track marker arms near electrical lines.

   Fully raise openers, close hydraulic lock-up valve (A).

3. Fold track markers. (See FOLDING AND UNFOLDING TRACK MARKERS in Operating the Machine section.)

4. On 3 and 4 m version, secure markers (B) with safety chain (C).

5. Attach parking brake lever rope to tractor cab. (See ATTACHING PARKING BRAKE LEVER ROPE in this section.)

6. CAUTION: Avoid injury or death from electrocution. Do not fold outer units near electrical lines.


   ZX013004-UN-02DEC97

   A - Outer Unit Frame

   B - Strap

   C - Quick-Lock Pin

   Fold Outer Units (4 and 6 m Version Only):

   Fold up outer units. (See FOLDING UP OUTER UNITS (4 and 6 m Version Only) in Operating the Machine section.)

---




7. Lock outer unit frames (A) with strap (B) and quick-lock pin (C).
