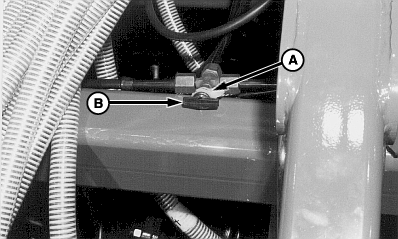

Brake Pressure Test Port

A78466-UN-26JUL13

A - T-fitting With Test Port

B - Protective Cap

At the left rear of the frame the brake line branches off to the left and right brake cylinders. T-fitting (A) is provided with a test port for measuring brake pressure and a plug (B) for protecting the test port.
