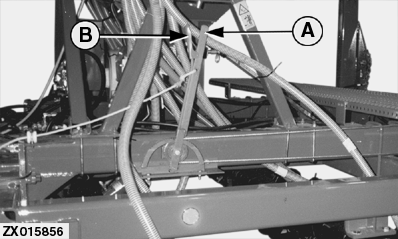

Engaging Parking Brake

ZX015856-UN-02NOV98

A - Lever

B - Knob

Pull lever (A) to engage parking brake.

Engage parking brake each time drill is detached from tractor by pulling parking brake lever (A) until it bottoms.

To release parking brake, pull lever (A) and press knob (B). Hold knob (B) while releasing the lever (A).
