Adjusting Closing Wheel

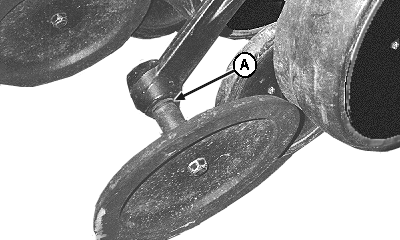

N49816
N49816-UN-16APR98

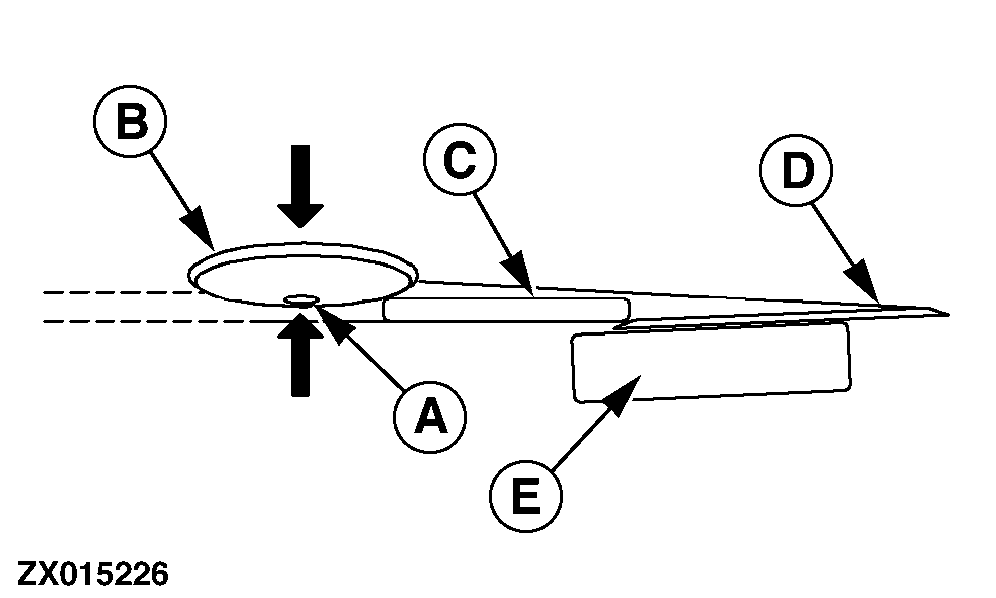

ZX015226
ZX015226-UN-08JUL98

A - Washers

B - Closing Wheel

C - Press Wheel

D - Disk

E - Gauge Wheel

Lateral adjustment of the closing wheels can be made by adding or subtracting flat washers at point (A).

For heavier soils, position closing wheel further to the outside of the furrow.

ZX,OM750A010214-19-20050906
