Emptying the Seed Hopper and Metering Device

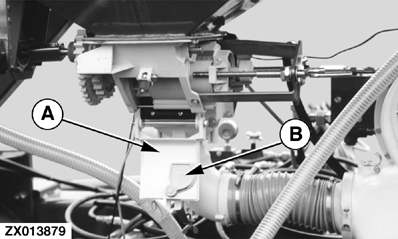

ZX013879-UN-02DEC97

A - Trapdoor

B - Rotary Slide Valve

CAUTION: Make sure that the tractor is standing on firm, level ground. Then lower the drill. Secure the tractor so that it cannot roll either forwards or backwards. Turn off the tractor engine and blower.

After sowing, the seed hopper and metering device must be emptied.

If the hopper is nearly empty, place a container underneath the hopper and open the trapdoor (A).

If there is still a relatively large quantity of seed left in the hopper, this can be discharged in small portions at a time via the rotary slide valve (B) in the hopper's trapdoor.

Turn the calibrating handle one full revolution in order to remove the last of the seed. It may be necessary to use a brush to remove contaminants and deposits. Leave the metering device open — this prevents rodents from causing damage.
