Check Gauge Wheel Clearance—All Gauge Wheels

NOTE: Clearance must be checked at seed boot outlet.

A85860-UN-09APR15

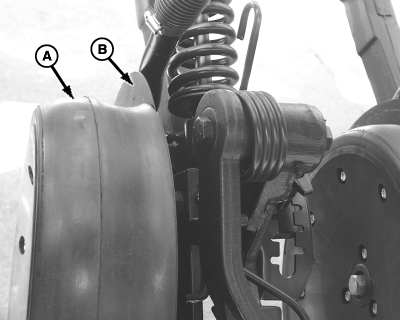

114 mm (4.5 in.) Closed Gauge Wheel Shown

A85861-UN-09APR15

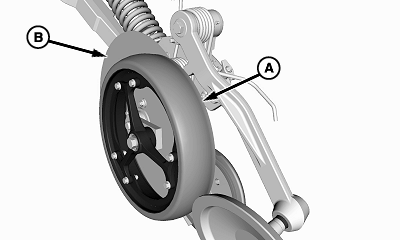

76 mm (3 in.) Spoked Gauge Wheel Shown

A - Disk Opener

B - Gauge Wheel

NOTE: A correct clearance is 1.0 mm to 5.6 mm (0.04 in. to 0.22 in.). A clearance of 3.2 mm (0.125 in.) is recommended.

Add or remove shim washers at wheel mounting, as necessary, to obtain specified clearance.

Item	Measurement	Specification
Gauge Wheel to Disk Opener	Clearance	3.2 mm (0.125 in.)
