Warning Light Configuration (Style A)

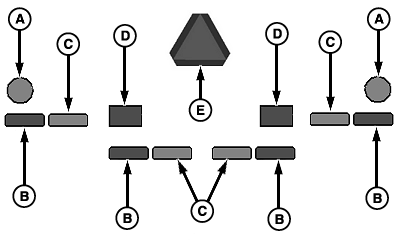

From rear of unit, lights and reflectors are oriented as shown.

Starting from the outside of the light bracket moving towards the center of the unit, lights and reflectors are oriented in the following order:

  1. A86110
    A86110-UN-14APR15

    A - Amber Light

    B - Red Reflector

    C - Orange Reflector

    D - Red Light

    E - SMV Emblem

    Amber light (A)

  2. Red reflector (B)
  3. Orange reflector (C)
  4. Red light (D)

Slow moving vehicle (SMV) emblem (E) must be visible to all vehicles that approach from the rear.

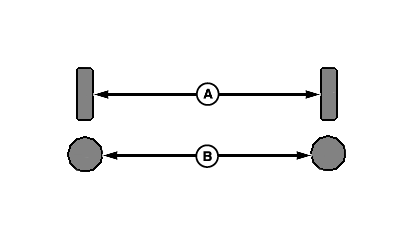

A86109
A86109-UN-14APR15

A - Yellow Reflector

B - Amber Light

From front of unit, lights and reflectors are oriented as shown.

Starting from the outside of the light bracket moving towards the center of the unit, lights and reflectors are oriented in the following order:

  1. Yellow reflector (A)
  2. Amber light (B)

BB83525,0000234-19-20150414
