Bleed and Attach Wing Fold Cylinders

CAUTION:

X9811
X9811-UN-23AUG88

Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high-pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result.

  1. N37063
    N37063-UN-06OCT88

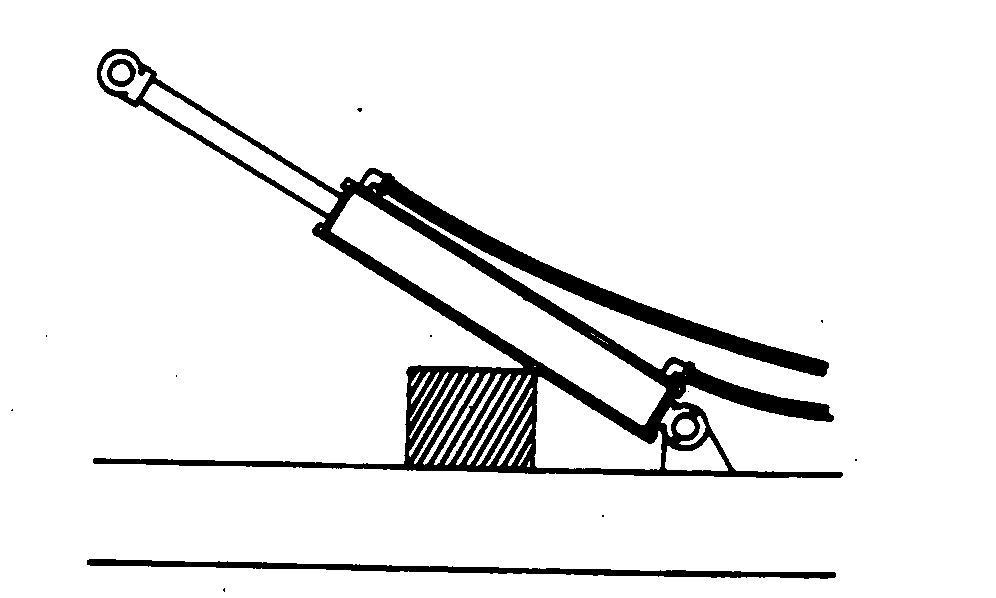

    Support cylinders on wooden blocks, so rods can extend and retract without interference.


  2. CAUTION: If cylinders are not bled as described, wings could drop unexpectedly, causing injury or death.

    Bleed air from system.

    1. Connect hoses to tractor.
    2. Fully extend and retract all cylinders at least two times, maintaining hydraulic pressure at full extension for at least 30 seconds.
    3. Extend cylinders again, maintaining pressure at full extension for one minute to allow all air to escape from cylinders.

  3. CAUTION: To avoid injury or death, stand clear of machine when wings are being folded or unfolded. Mechanical or hydraulic failure can allow wings to fall rapidly, causing injury or death.

    A74884
    A74884-UN-12APR12

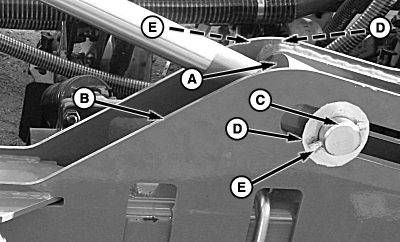

    A - Cylinder Rod End

    B - Wing Bracket

    C - Rod Pin

    D - Large Washer (2 used each cylinder)

    E - Roll Pin (2 used each cylinder)

    Attach rod ends (A) of cylinders to wing brackets (B), using washers (D) and roll pins (E) on each rod pin (C).

LD45720,0000597-19-20120412
