Detach Machine From Tractor

CAUTION: To help prevent severe injury or death to you or someone else:

Keep all persons away from machine when raising and lowering wings.

Always locate machine on level ground when raising and lowering wings.

Never raise or lower wings when moving.

1.
   N48107-UN-17DEC01

   With Electro/Hyd SCV Controls

   A - SCV I Tractor Control Lever

   With transmission in “park”, start tractor engine and move SCV I lever (A) back to raise openers.

---




2.

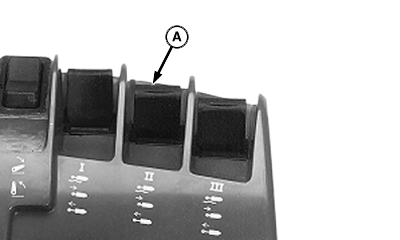

   N48108-UN-17DEC01

   With Electro/Hyd SCV Controls

   A - SCV II Tractor Control Lever

   Move SCV II lever (A) back to fold wings fully.

---




3.
   A43336A-UN-28FEB05

   Valve Shown In Closed Position

   A - Hydraulic Lock-Up Valve (shown closed)

   Close hydraulic lock-up valve (A) on machine.

---




4.

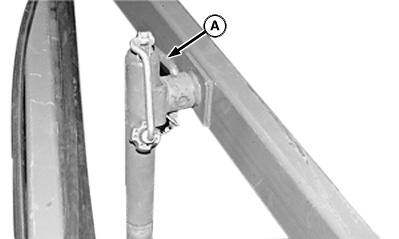

   N40112-UN-17DEC01

   Seeding Tool

   A - Hitch Jack

   Attach hitch jack (A) in storage position with pins.

---




5. CAUTION: Serious personal injury can result if you attempt to disconnect hydraulic hoses under pressure.

   Electro/Hydraulic SCV Control: With tractor engine running, place SCV control levers in “float” position to relieve pressure before disconnecting hoses.

   IMPORTANT: Wings gradually lower if pressure is not relieved from wing fold hydraulic cylinders. Temperature increases or sunlight can cause thermal expansion of hydraulic fluid. Always relieve pressure before parking or storing machine.


   N48108-UN-17DEC01

   With Electro/Hyd SCV Controls

   A - Control Lever

   (If Wings are Folded) Before disconnecting fold cylinder hydraulic hoses, relieve pressure by positioning SCV II control lever (A) in “float” position with tractor engine running.

---




6. CAUTION: Serious personal injury can result if you attempt to disconnect hydraulic hoses under pressure.

   Electro/Hydraulic SCV Control: With tractor engine running, place SCV control levers in “float” position to relieve pressure before disconnecting hoses.

   IMPORTANT: To avoid damage to motor seals, case drain hose (B) is removed last.

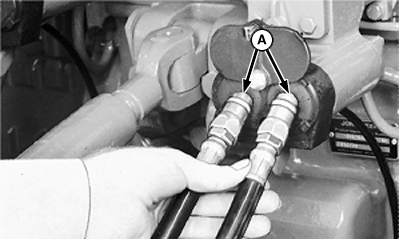

   RW5887-UN-17DEC01

   With Mechanical SCV Controls

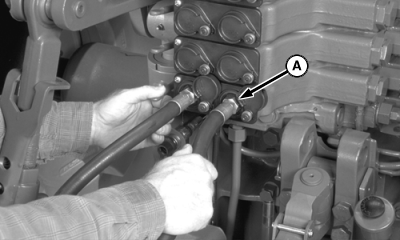

   RW55304-UN-18DEC01

   With Electro/Hyd SCV Controls

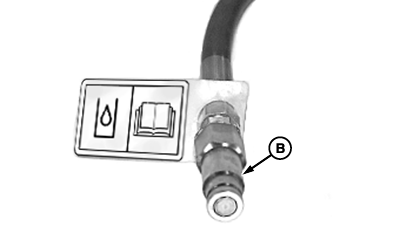

   A85850-UN-30MAR15

   Case Drain Hose


   N45567-UN-14OCT93

   Seeding Tool

   A - Hydraulic Hoses

   B - Case Drain Hose

   Remove hydraulic hoses (A) and electrical connectors from tractor outlets and cover receptacles. Place hoses and cables in storage positions on hitch bracket.

---




7. Remove safety chain and hitch pin.

8. Drive tractor away from machine.
