Operate Half-Width Disconnect Clutches

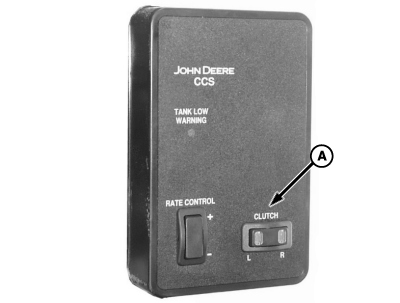

A49103-UN-14MAY02
A - Switch
The half-width disconnect clutches are controlled with the clutch switch (A) on the CCS Control Console. With switch in the center position, both clutches are engaged. To disengage right side, move switch to right. To disengage left side, move switch to left.|
