Electronic Population Control System
A49115-UN-14MAY02

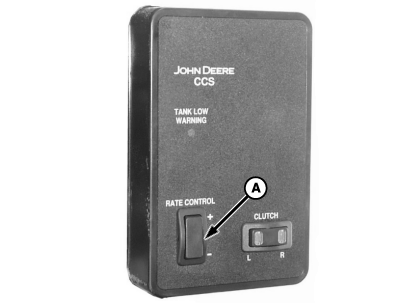

A - Rate Control Switch
Electronic population control allows the operator to increase or decrease product application rates without leaving the tractor cab.
A49170-UN-19JUL02

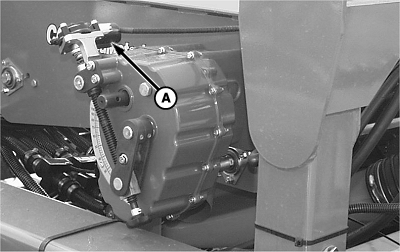

A - Transmission Mounted Rate Motor
Changing rate settings activates the transmission mounted rate motor (A). Turn adjustment screw to increase or decrease transmission output speed and application rate to agree with operators selection.|
LD45720,00005D8-19-20120228 |
