Replace Opener Arm Pivot Bushings

1. NOTE: Clean dirt from parts before removal.

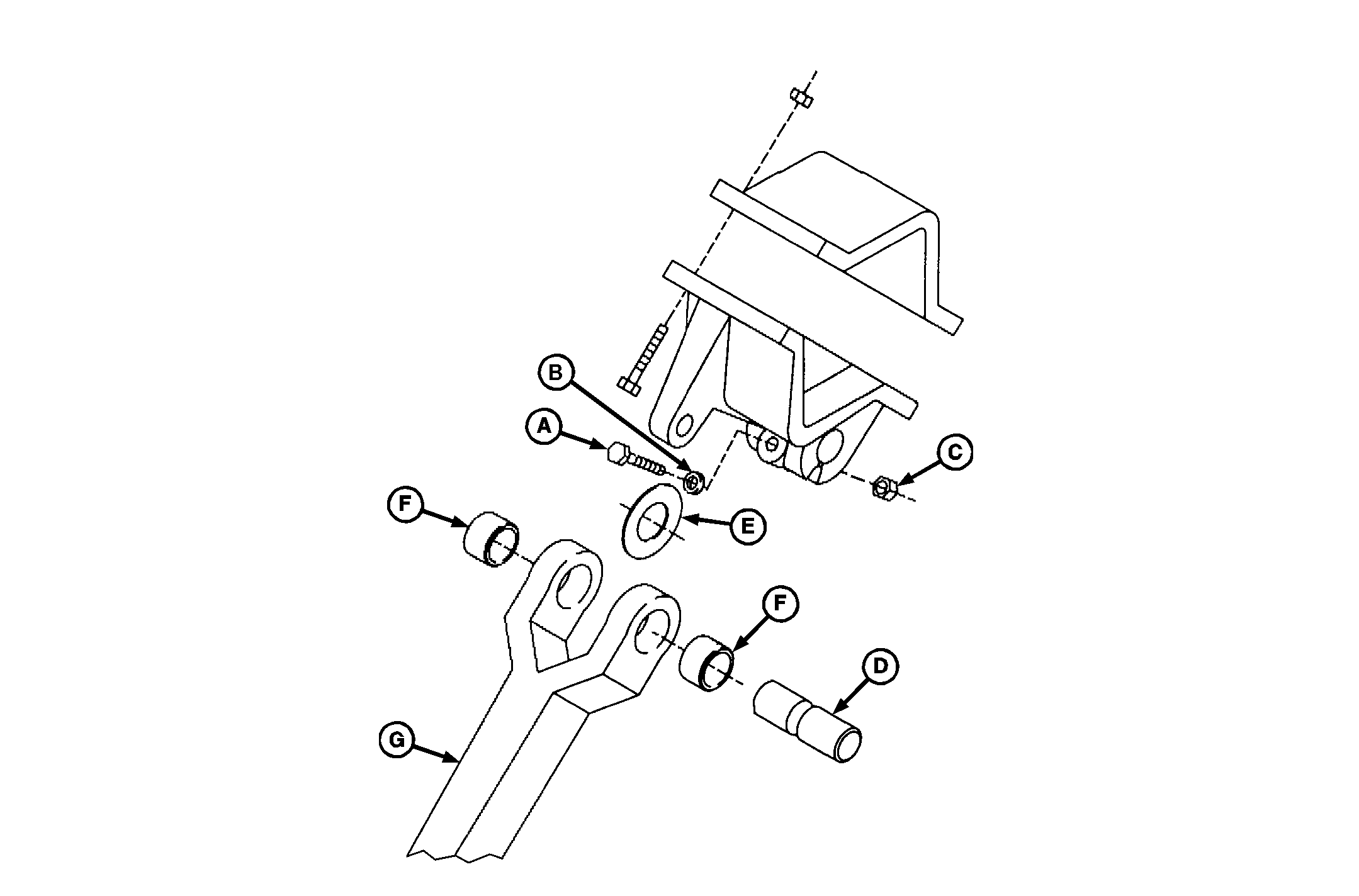

   N49844-UN-23APR98

   A - Cap Screw, 5/8 x 3 in. (Grade 8)

   B - Washer

   C - Lock Nut

   D - Pivot Pin

   E - Thrust Washer

   F - Arm Pivot Bushings

   G - Opener Arm

   Remove hardware and pivot pin (D) from arm. Retain thrust washer (E).

---




2. Drive old bushings from arm.

3. IMPORTANT: Do not damage outer edges of new bushings when installing.

   Press new bushings into arm bores, flush to 0.76 mm (0.03 in.) below outside surface.

4. IMPORTANT: Thrust washer must be installed between arm and anchor castings, on same side of arm as disk.

   Position thrust washer on disk side of arm (between arm and anchor) and attach arm with pivot pin. Do not damage bushings when installing pin.

5. Install pin retaining hardware and tighten to specification.

   Item	Measurement	Specification
   Pin Retaining Hardware	Torque	163 N·m (120 lb.-ft.)
