Clean Air Chamber

1. NOTE: Air chamber should be initially cleaned out daily. Adjust interval as necessary based on amount of material blown out.

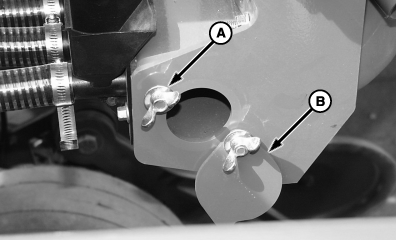

   A49112-UN-14MAY02

   A - Wing Nut

   B - Manifold Cleanout Cover

   Loosen wing nut (A) and open manifold cleanout cover (B).

---




2. CAUTION:


   TS265-UN-23AUG88

   To protect yourself from flying seed and debris, stay in the tractor cab while the blower is running.

   If you must leave the cab with the blower running, make sure that tractor is in park and wear protective clothing including face mask, gloves, and goggles.

   Stay clear of manifold opening when blower is running. Seed or foreign material blowing out at high speed can cause serious injury.

   Start tractor and run blower for 30 seconds to remove product from meter.

---




3. Stop blower and turn off tractor.

4. Close meter cleanout door.
