Check Drive Wheel Hardware
IMPORTANT: Check torque on wheel bolts before operation, after initial 10 hours of use and after every 50 hours.

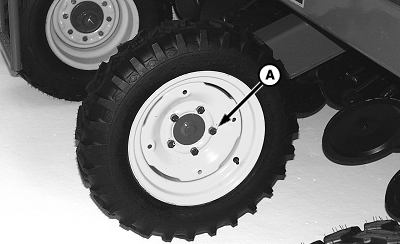

A49171-UN-14MAY02
A - Wheel Bolt
Tighten wheel bolts (A) to specification.
| Item | Measurement | Specification |
| Wheel Bolts | Torque | 155 N·m (115 lb·ft) |
|
LD45720,00005E2-19-20160413 |
