Electro/Hydraulic SCV Controls for Active Down-Force

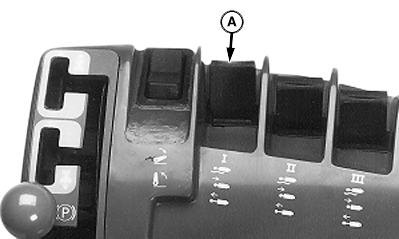

N48107-UN-17DEC01

A - SCV Control Lever

Move SCV I lever (A) forward until detent click is heard. With SCV I time knob set to CONTINUOUS, constant oil pressure goes to the active down force valve. Adjust lever to maintain correct pressure setting.
