Remove Venturi Blockage

CAUTION: Before leaving the cab to clean venturis, verify that parking brake is engaged, transmission is in park, and tractor engine is off.

1.

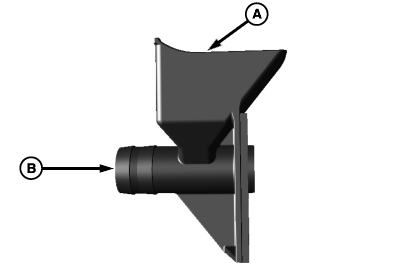

   A76623-UN-05NOV12

   A - Venturi Seed Inlet

   B - Venturi Seed Outlet

   Remove blocked venturi. (See Replace Venturi in the servicing section.)

---




2. Remove seed and debris from openings (A and B).

3. Reinstall venturi.
