Information Decals

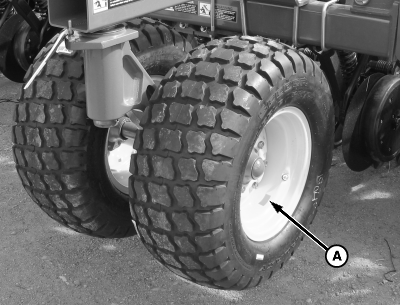

A71377-UN-03MAY11

A - Decal, Wheel Bolt Torque

(See Check Wheel Bolts and Bearings in Servicing section.)

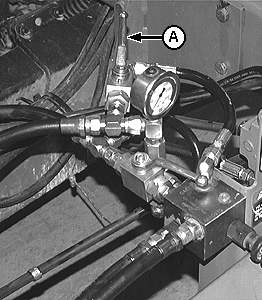

A43337A-UN-28FEB05

A - Valve, Open/Closed Center

OPEN VALVE FOR CLOSED CENTER SYSTEMS

CLOSE VALVE FOR OPEN CENTER SYSTEMS

(See Adjust Opener Down Force—Tractors With Closed Center Hydraulic Systems in Operating Machine-Air Tool section.)

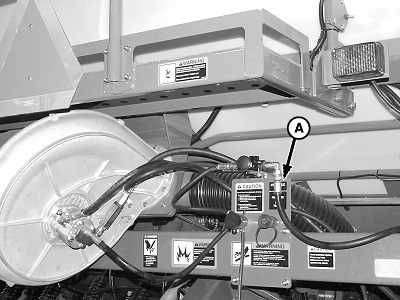

A71660-UN-31MAY11

A - Decal, Hydraulic Flow

PULL FOR AUGER / PUSH FOR BLOWER

(See Set Optional Blower/Auger Selector Valve in Operating Machine-Tanks and Platform section.)

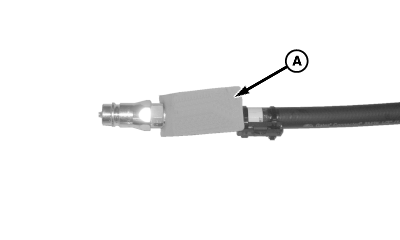

A71661-UN-31MAY11

A - Decal, Motor Hoses

DO NOT CONNECT MOTOR HOSES UNTIL MOTOR CASE DRAIN LINE IS CONNECTED TO TRACTOR OR HYDRAULIC MOTOR FAILURE WILL RESULT.

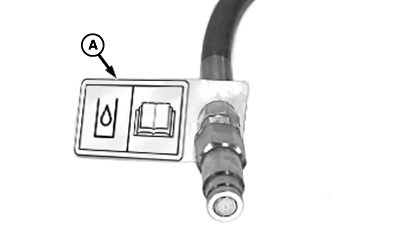

A85534-UN-09MAR15

A - Decal, Case Drain

Hydraulic motor case drain line.

This hose must be connected during hydraulic motor operation to avoid motor failure.

(See Low-Pressure Case Drain Connections in Preparing Tractor section).

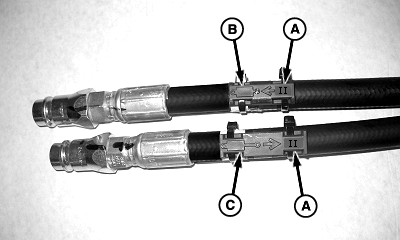

A71412-UN-05MAY11

A - SCV Number

B - Flow Direction

C - Flow Direction

(A) Identifies tractor SCV circuit to connect too.

(B and C) Identifies “flow direction” and connects to the matching ports on the tractor.
