Select Meter Wheels

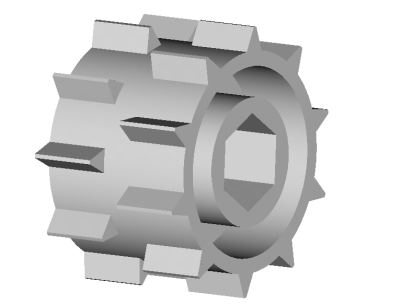

A48637
A48637-UN-14MAY02

Three types of meter wheels are available to handle different products or product delivery needs and application rates.

NOTE: Use spacers with low rate meter wheel.

  • Black 16 mm wide— Low Rate: Used for applying low rates of sorghum.
  • Black 32 mm wide—Medium Rate: Used for applying medium rates of sorghum and wheat.
  • White 32 mm wide—High rates: Applying high-rates of soybeans, wheat, barley, rice, and oats.

Ensure that proper meters are installed for product being used. (See Rate Charts in this section). Product size and density effects out put rate. To ensure best accuracy, perform a meter rate check.

MH69740,0000431-19-20160302
