Safety Features

A50884A
A50884A-UN-28FEB05

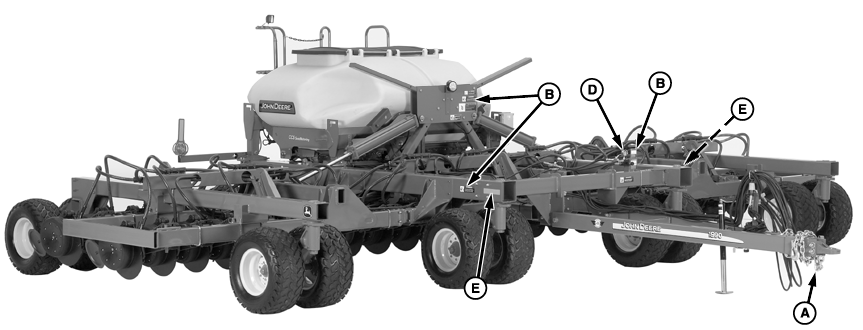

Front View (Two-Rank Shown, Single-Rank Similar)

A50883A
A50883A-UN-28FEB05

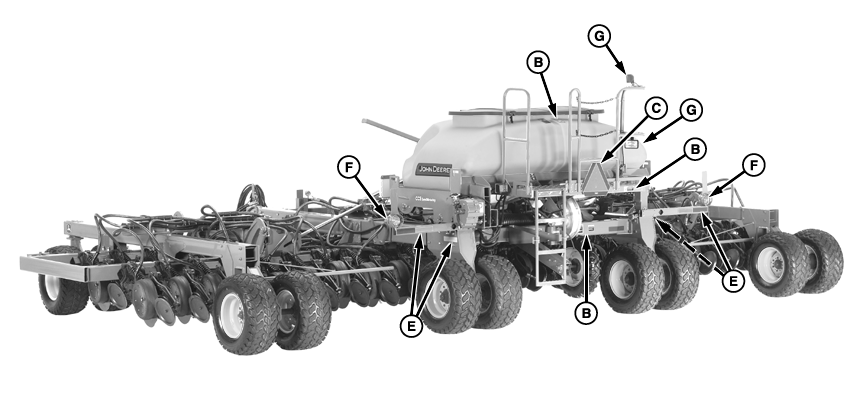

Rear View (Two-Rank Shown, Single-Rank Similar)

A - Safety Chain

B - Safety Decals

C - Slow Moving Vehicle Emblem

D - Hydraulic Lock-up Valve

E - Reflectors (Both Sides)

F - Transport Lights (Both Sides)

G - Fill Lights

In addition to the safety features shown here, other components and systems, safety signs on the machine, and safety messages and instructions in the Operator’s Manual contribute to the safe operation of this implement when combined with the care and concern of a capable operator. The construction of this implement may not meet all local or national requirements for transport on a public roadway. In regions or countries that have national certification requirements for roadway transport, it may be impossible for this implement to be approved for such roadway transport. The customer is responsible for understanding and complying with all local, regional, and national requirements regarding roadway transport.

OUMX005,0001B3B-19-20061003
