Check Tire Pressure and Position

A49101-UN-14MAY02

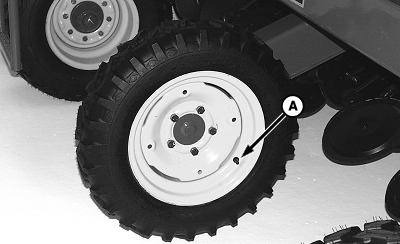

Ground Drive Tire

A - Tire

Single-Rank Machine
Tire Size		kPa	bar	psi	Location
11L x 15 8PR		248	2.48	36	Wing Wheels
11L x 15 10PR		303	3.03	44	Center Frame Wheels
31 x 13.5-15 12PR		310	3.10	45	Center and Wing Frame Wheels
Ground Drive Tire		248	2.48	36	CCS Unit
Two-Rank Machine
Tire Size		kPa	bar	psi	Location
11L x 15 8PR		248	2.48	36	Wing Wheels
11L x 15 12PR		359	3.59	52	Center Frame Wheels
31 x 13.5-15 12PR		310	3.10	45	Wing Wheels
31 x 13.5-15 12PR		414	4.14	60	Center Frame Wheels
Ground Drive Tire		248	2.48	36	CCS Unit
