Operate Tank Lid

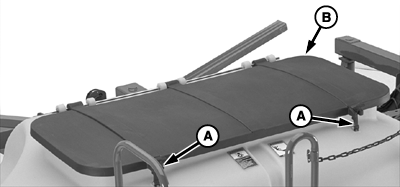

A55883
A55883-UN-28FEB05

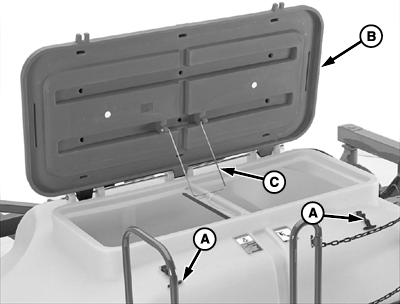

A55882
A55882-UN-28FEB05

70 Bushel Tank Shown, 100 Bushel Similar

A - Lid Latches

B - Lid

C - Support Rod

To open, unhook latches (A) and lift lid (B). Use support rod (C) to hold lid open. To close, pull support rod from notch, close lid and re-hook latches.

OUMX005,0001B79-19-20160302
