Fill Tank

IMPORTANT: Keep seed free of debris. Debris causes blockage at venturi. Optional fill screen is available, see your John Deere dealer.

Platform chains (A) must be reattached after filling tank.

Clean out any build-up of treatments and talc between fills.

Level of seed must be below tank lid before closing, failure to do so could result in damage to lid.

NOTE: When seeding oats, install bridge divider to help product flow. (See Install Bridge Divider When Seeding Oats in Preparing Machine section.)

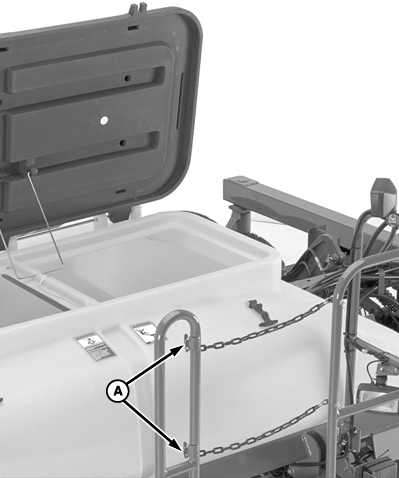

A49897A-UN-28FEB05

A - Platform Chains

After filling tanks, reattach platform chains.
