Position Drawbar

CAUTION:

N42074N
N42074N-UN-25SEP90

Avoid personal injury or death due to losing steering control of machine. Always pin drawbar in center position for ALL tractors, when transporting machine.

NOTE: For four-wheel drive tractors, leave one hole clearance on each side of drawbar for field operation only.

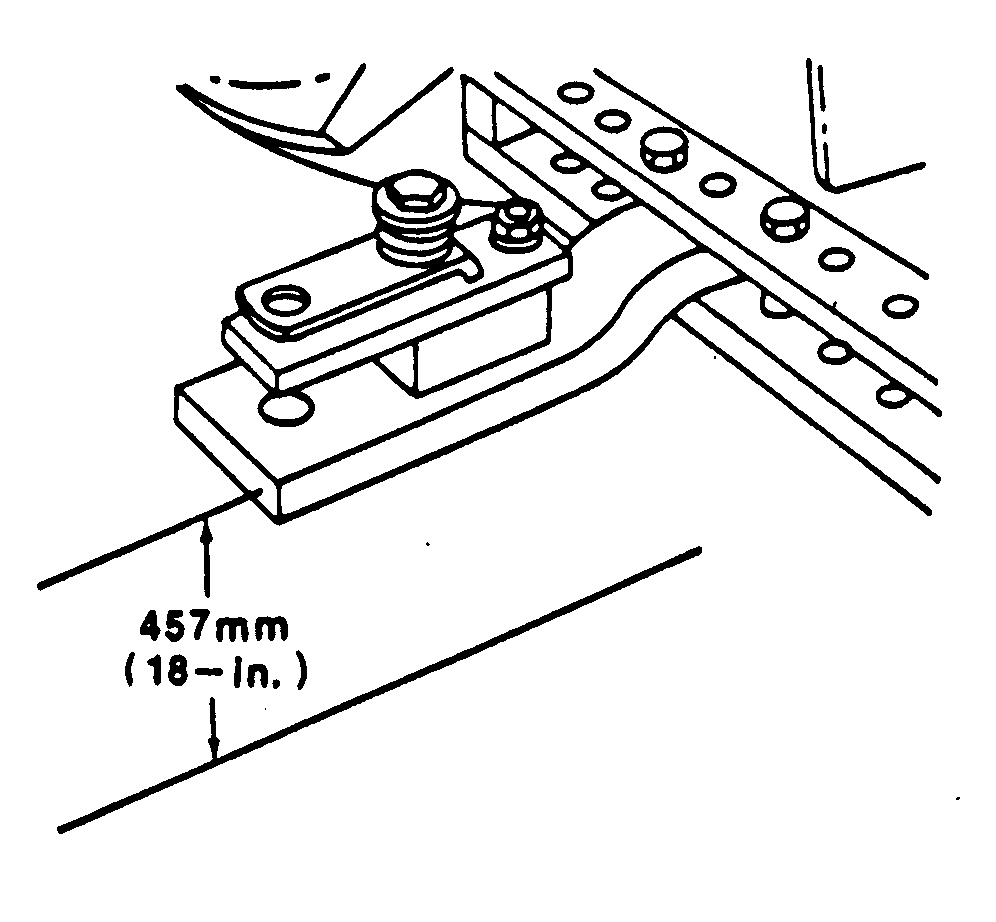

  1. Set drawbar at short length, fixed centered position, as close as possible to 457 mm (18 in) from ground to top of drawbar.

  2. Be sure clevis assembly (if equipped) is installed on top of drawbar.

  3. Tighten clevis assembly bolts according to specifications. (See your tractor Operator's Manual for specifications.)

OUO6023,0001684-19-20160302
