Repair Closing Wheel Assembly

1. NOTE: Follow steps 1—7 for closing wheel repair.

   Clean dirt from parts before removal.

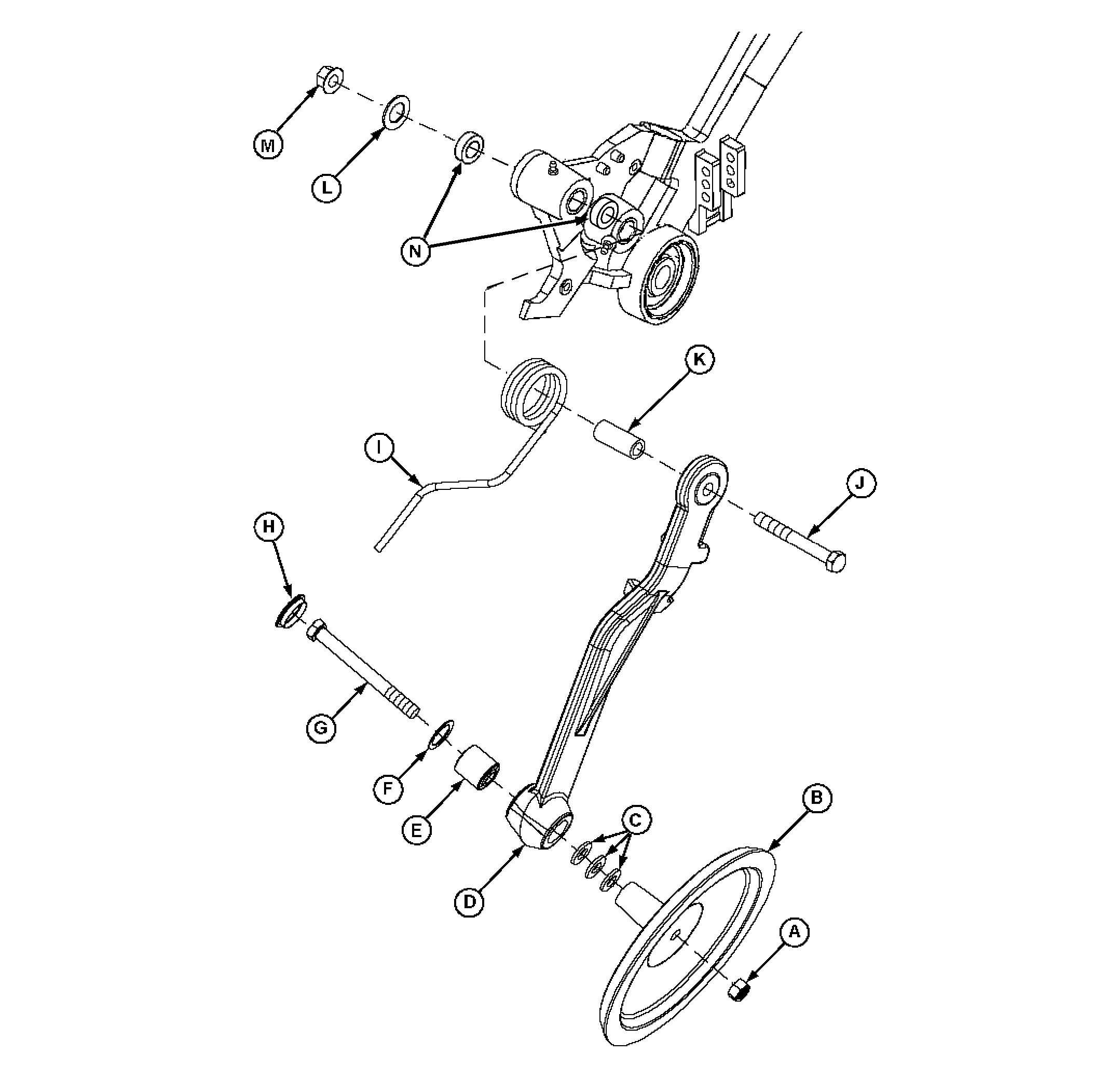

   N59860-UN-25APR02

   A - Nut

   B - Wheel

   C - Shim Washers

   D - Arm

   E - Ball Bearing

   F - Snap Ring

   G - Cap Screw, 5/8 x 6-1/4 in

   H - Bearing Cap

   I - Shim Washers

   J - Cap Screw, 5/8 x 5-1/4 in

   K - Bushing

   L - Washer

   M - Lock Nut

   N - Bushings

   Remove bearing cap (H), lock nut (A) and snap ring (F) to remove wheel assembly and bearing (E) from arm (D).

   NOTE: Shim washers (C) are used for lateral repositioning of closing wheel.

   See Position Closing Wheel in Preparing Machine section for further information.

---




2. Remove bearing (E) from arm.

3. Inspect all parts for wear or damage and replace as necessary.

4. Press new bearing into arm bore.

5. Install wheel and shim washers (as required) to cap screw and retain with lock nut.

6. Install bearing cap.

7. NOTE: Follow steps 8—11 for arm bushing replacement.

   Remove cap screw (J), lock nut (M), and arm parts.

8. Remove bushings (K and N) from bore.

9. Press new bushings into bore, flush to 0.76 mm (0.03 in) below outside surface.

10. Install previously removed arm and attaching parts. Tighten hardware to specification.

    Item	Measurement	Specification
    Hardware	Torque	200 N·m (150 lb·ft)

11. Grease all grease fittings.
