Repair Press Wheel Assembly

1. NOTE: Follow steps 1—6 for press wheel repair.

   Clean dirt from parts before removal.

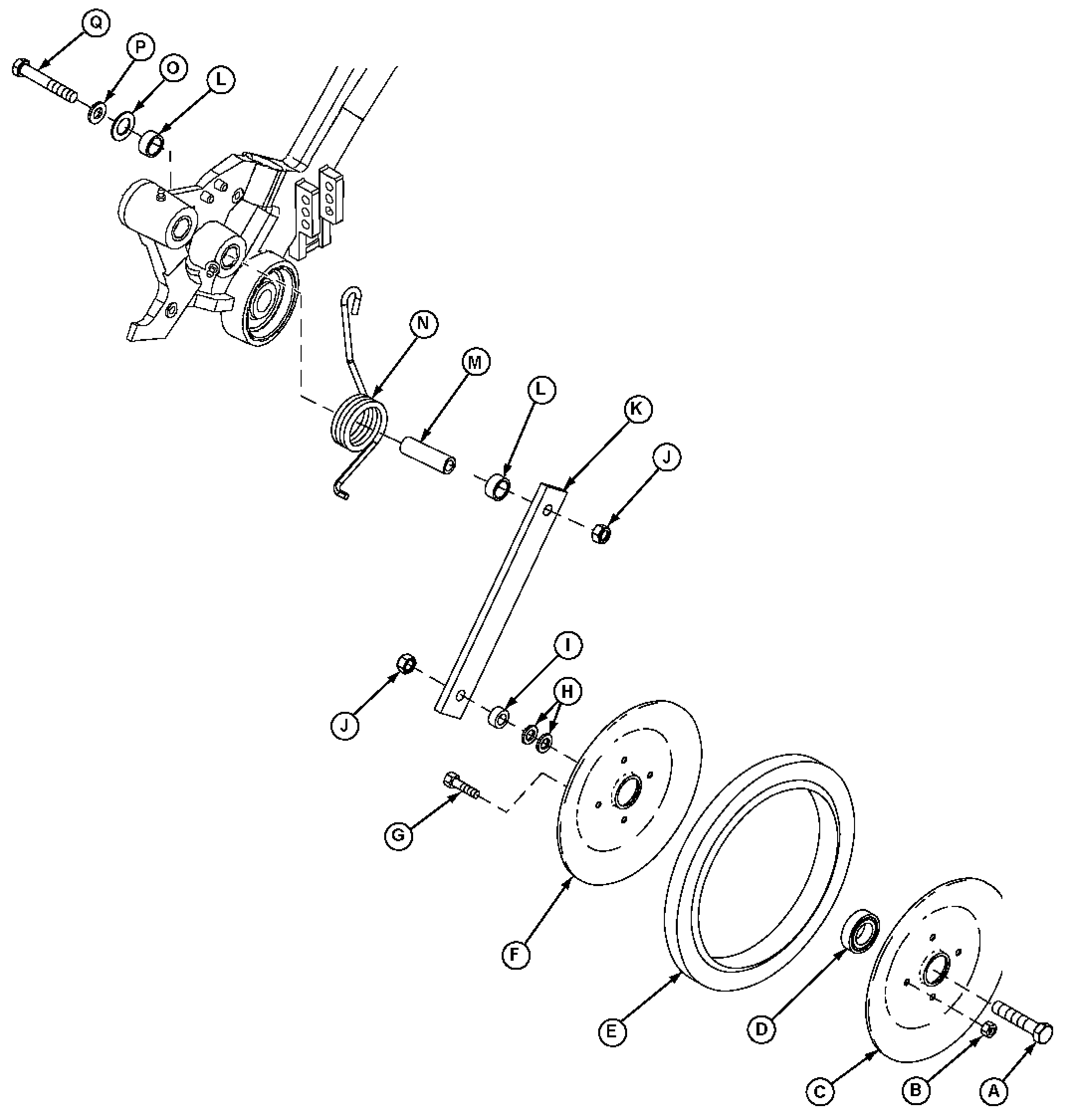

   N59859-UN-16APR02

   A - Cap Screw 5/8 x 2-3/4 in

   B - Lock Nut

   C - Wheel Half

   D - Bearing

   E - Tire

   F - Wheel Half

   G - Cap Screw M6 x 12

   H - Washers

   I - Spacer

   J - Lock Nut

   K - Arm

   L - Bushing

   M - Bushing

   N - Spring

   O - Washer

   P - Washer

   Q - Cap Screw 5/8 x 3-3/4 in

   Remove cap screw (A) to remove wheel assembly from arm.

---




2. Remove cap screws (G) and lock nuts (B) to disassemble wheel.

3. Inspect parts for wear or damage and replace as necessary.

4. Install bearing (D) and assemble wheel parts with cap screws (G) and lock nuts.

5. Attach wheel to arm using spacer (I), washer (H), and previously removed hardware. Tighten hardware to specification, and install cap.

   Item	Measurement	Specification
   Hardware	Torque	110 N·m (80 lb·ft)

6. NOTE: Follow steps 7—10 for arm bushing replacement.

   Remove cap screw (Q) and arm parts.

7. Remove bushings (L and M).

8. Press new bushings into bore, flush to 0.76 mm (0.03 in) below outside surface.

9. Install previously removed arm and attaching parts.

10. Grease all grease fittings.
