Replace Seed Deflectors and Boots

1. NOTE: Clean dirt from parts before removal.

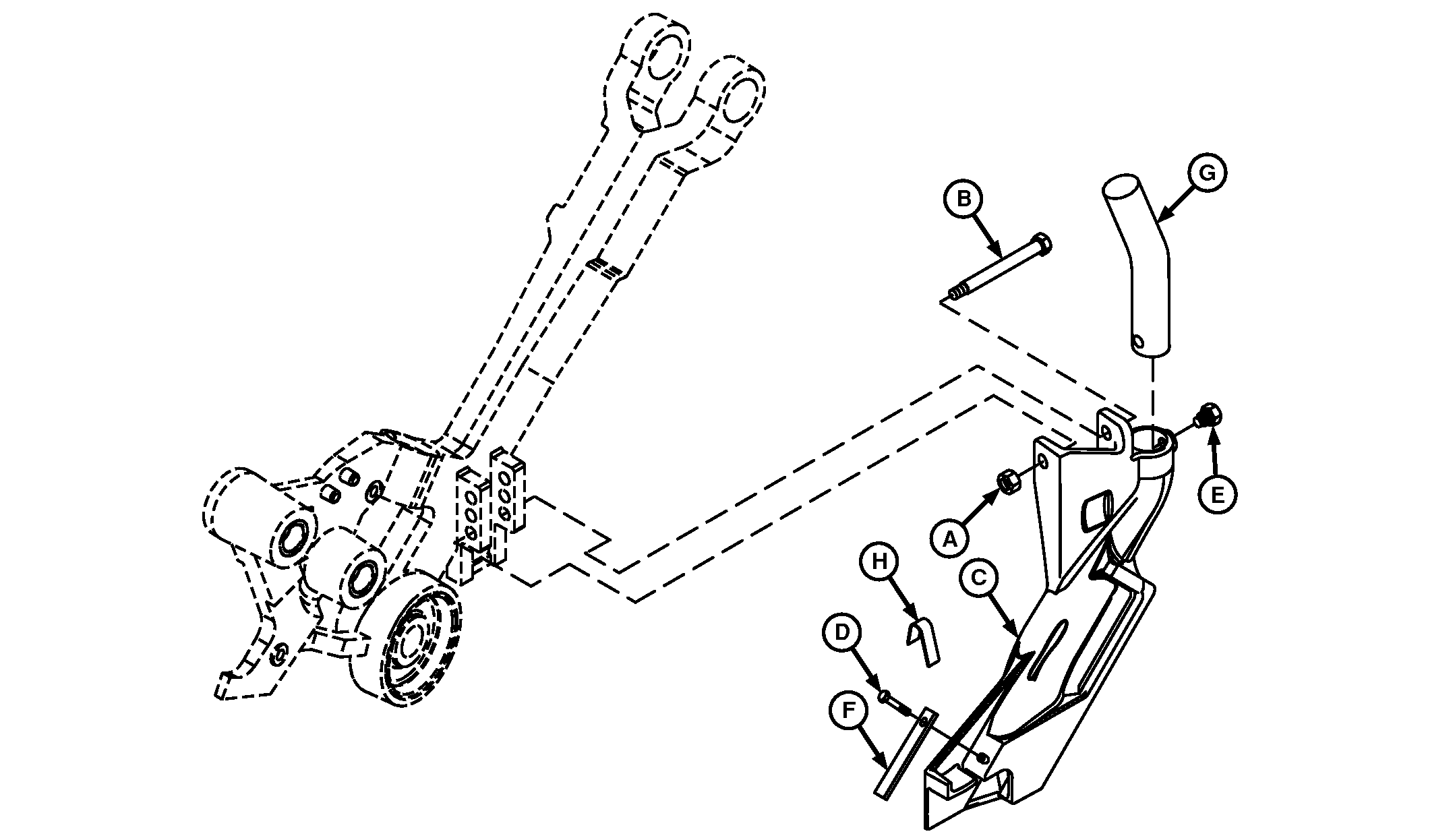

   N60046-UN-04APR02

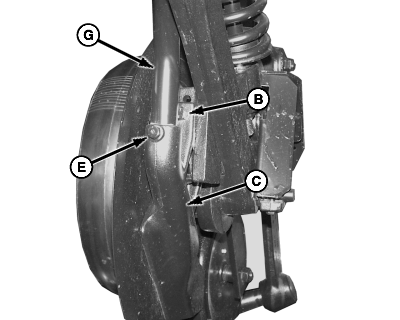

   N60074-UN-05APR02

   A - Lock Nut

   B - Cap Screw, 7/16 x 3-3/4 in

   C - Seed Boot

   D - Cap Screw, 1/4 x 1/2 in

   E - Cap Screw, 3/8 x 9/16 in

   F - Seed Deflector

   G - Seed Tube

   H - Leaf-Spring

   Loosen cap screw (E) and remove seed tube (G).

---




2. Remove cap screw (B) and lock nut (A) to remove seed boot.

3. Remove cap screw (D) to replace seed deflector (F).

4. IMPORTANT: Leaf-spring (A) must be installed to keep seed boot against inside of disk opener for accurate seed placement.

   NOTE: Seed boot can be installed using one-of-three mounting positions. See Adjust Seed Boots in Preparing Machine section for further information.

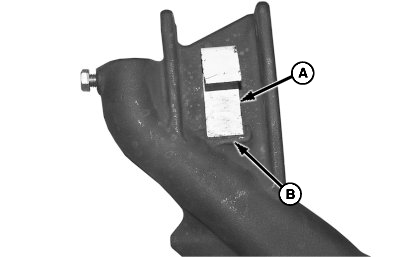

   N60072-UN-05APR02

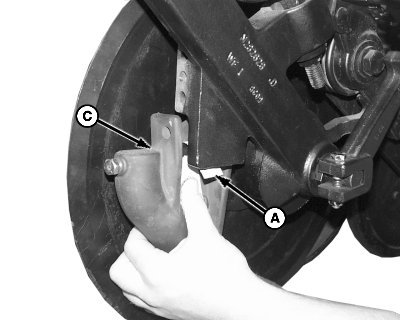

   N60073-UN-05APR02

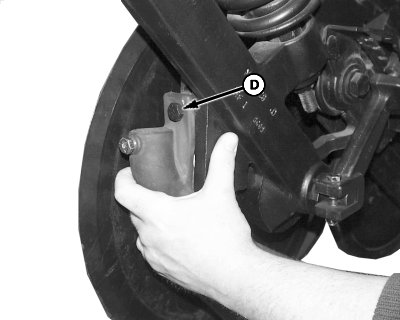

   N60245-UN-16APR02

   A - Leaf-Spring

   B - Recessed Area

   C - Seed Boot

   D - Cap Screw

   Squarely position leaf-spring (A) in recessed area (B) on seed boot.

---




5. While holding leaf-spring with finger, slide seed boot (C) into position.

6. IMPORTANT: Leaf-spring must be seated in recessed area before cap screw (D) is installed.

   Position seed boot to desired level, compress spring until holes are aligned and install cap screw (D).
