Replace Feed Gates

1. Empty tanks. See Tank Cleanout in Operating Machine—Tanks and Platform section.

2.

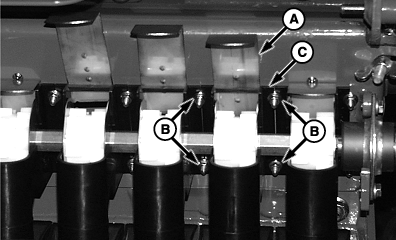

   A49172-UN-14MAY02

   A - Feed Gate

   B - Nut

   C - Metering Cup

   Loosen nuts (B) enough so that metering cup (C) can be moved forward.

---




3. Remove old feed gate (A) and replace with new feed gate.

4. Tighten nuts (B) to specification.

   Item	Measurement	Specification
   Nut	Torque	5 N·m (44 lb·in)
