Replace Venturi

1.

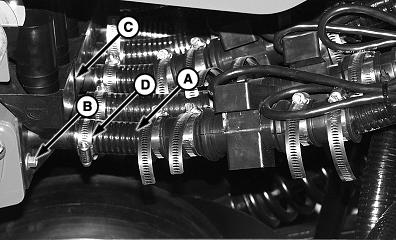

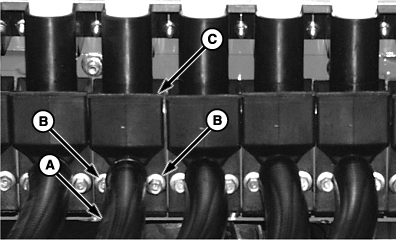

   A49173-UN-14MAY02


   A49174-UN-14MAY02

   A - Hose

   B - Cap Screw

   C - Venturi

   D - Hose Clamp

   Remove hose clamp (D) and hose (A).

---




2. Remove cap screws (B).

3. Remove old venturi (C).

4. Install new venturi using previously removed cap screws (B). Tighten to specification.

   Item	Measurement	Specification
   Cap Screw	Torque	10 N·m (89 lb·in)

5. Attach hose (A) using hose clamp (D).
