Install CCS Control Console—8000/9000, 8000/9000 TEN and 8020/9020 Series Tractors

1.
   A39304-UN-11MAR96

   A - Covers

   Unscrew plastic covers (A) from right-hand rear post to remove.

---




2.
   A39305-UN-11MAR96

   A - L-Bracket

   B - Cap Screws

   Install L-bracket (A) on post with two M10 x 20 cap screws (B).

---




3.
   A48236-UN-05NOV01

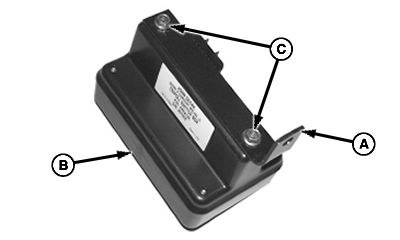

   A - Bracket

   B - Control Console

   C - Cap Screws

   Attach bracket (A) to back of control console (B) with two M6 x 12 cap screws (C).

---




4.
   A48238CCS-UN-24JUL02

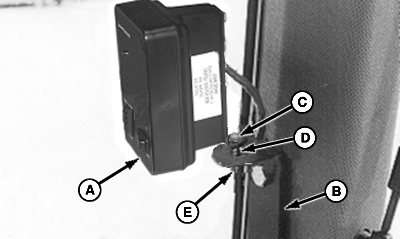

   A - Assembly

   B - L-Bracket

   C - Cap Screw

   D - Spacer

   E - Hex Nut

   Install control console assembly (A) to L-bracket (B) with M8 x 40 cap screw (C), spacer (D), and hex nut (E). Spacer (D) is placed between console bracket and L-bracket as illustrated.

---




5. Connect CCS console harness to CCS console.

6.
   A52157-UN-21APR03

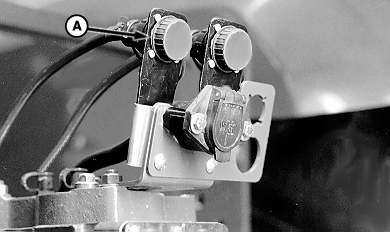

   Route CCS console harness (A) to rear of tractor.

---
