Replace Tank Level Sensor

1.
   A49580DS-UN-31JUL02

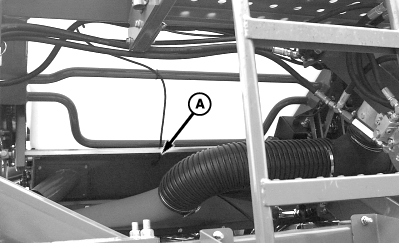

   A - Sensor Harness

   Disconnect sensor harness (A).

---




2.
   A49177-UN-21APR03


   A49177A-UN-21APR03

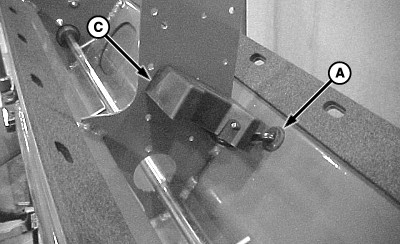

   A - Grommet

   B - Nut

   C - Sensor

   Remove grommet (A).

---

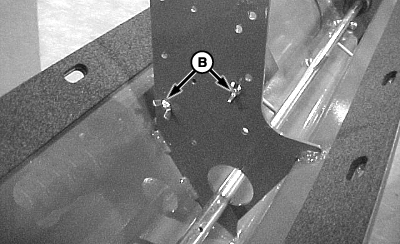

3. Remove and retain cap screws and wing nuts (B).

4. Remove sensor (C).

5. NOTE: Sensor is factory installed at lowest setting. For earlier warning, sensor can be moved higher up on plate.

   Install new sensor using cap screws and wing nuts removed earlier.

6. Route harness through hole and install grommet (A).

7. Connect sensor harness.
