Use Optional Auxiliary Hydraulics

CAUTION:

X9811
X9811-UN-23AUG88

Escaping fluid under pressure can penetrate the skin, causing serious injury. Avoid the hazard by relieving pressure before attaching hydraulic hoses to couplers.

Hydraulic hoses can fail due to physical damage, kinks, age, and exposure. Check hoses regularly. Replace damaged hoses.

IMPORTANT: All hydraulic couplers must be clear of debris, dust, and sand. Use protective caps on fluid openings until ready to make connection. Foreign material can damage the hydraulic system.

Before connection is made to auxiliary hydraulic couplers, place control lever for blower in “FLOAT” position.

A54095
A54095-UN-18MAR04

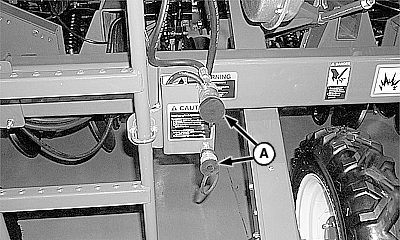

A - Auxiliary Hydraulic Couplers

Optional auxiliary hydraulic couplers (A) are available for use for auger when filling tanks. Hydraulic oil is supplied to auxiliary hydraulics from the tractor's SCV, through the blower/auger selector valve.

A49895
A49895-UN-15AUG02

A - Blower/Auger Selector Valve

Blower/Auger selector valve (A) is used to direct hydraulic oil to either the blower motor or to the auxiliary hydraulic couplers.

BLOWER: Push valve handle in for blower operations.

AUGER: Pull valve handle out for auger operations.

OUO6030,00003D7-19-20160302
