Adjust Gauge Wheel and Seeding Depth

N60054-UN-05APR02

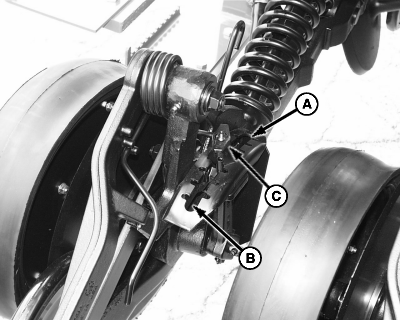

114 mm (4.5 in) Closed Gauge Wheel Shown

A85862-UN-09APR15

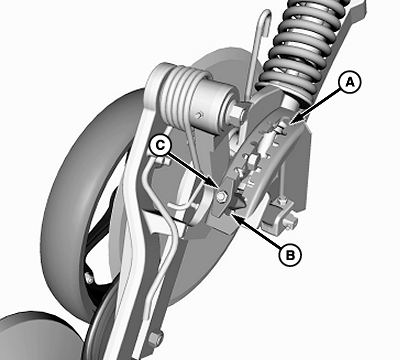

76 mm (3 in) Spoked Gauge Wheel Shown

A - Deep

B - Shallow

C - Handle

NOTE: If heavy field residue or worn disk openers prevent normal soil penetration, use a deeper setting.

Handle (C) controls seed depth from 13 to 90 mm (0.5 to 3.5 in). Generally, the second slot from the shallow end of adjustment range (25 mm [1 in] seed depth) is used as a starting point. Each adjustment slot changes seed depth in 6.35 mm (0.25 in) increments.

To Adjust:

Pull handle (C) up, turn 45 degrees and position in desired slot.
