Lubricate Openers

IMPORTANT: Do not use clay based grease. Use TY6341 grease.

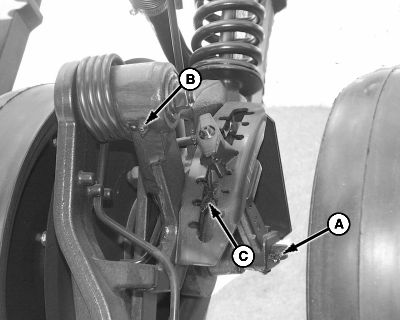

N60059
N60059-UN-16APR02

A - Depth Gauge Arm

B - Closing Wheel Pivot

C - Press Wheel Pivot

Apply ten pumps of grease to each opener depth gauge arm (A) at the end of each season or once a year.

Apply grease to closing wheel pivot (B) and press wheel pivot (C) every 50 hours.

Cycle depth gauge arm fully in each direction.

OUO6074,0000759-19-20150330
