Hydraulic Connections Recommendations

A82588-UN-23MAY14

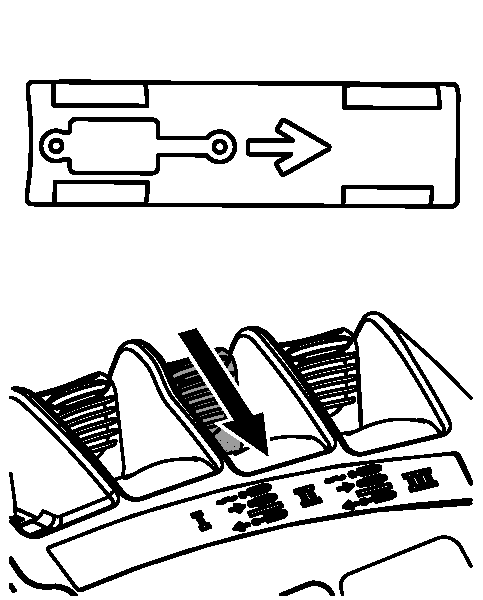

A82662-UN-27MAY14

Extend

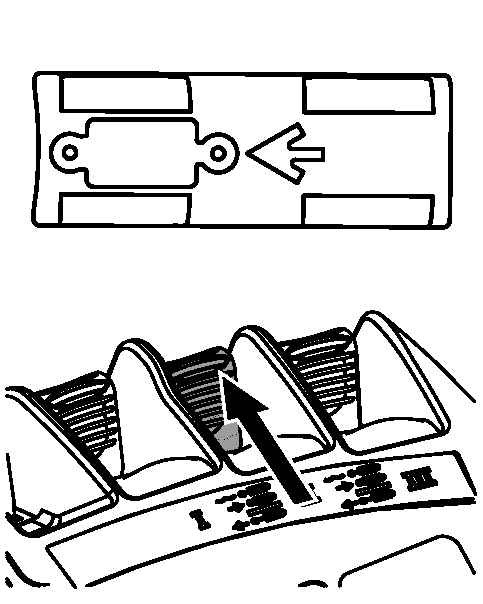

A82661-UN-27MAY14

Retract

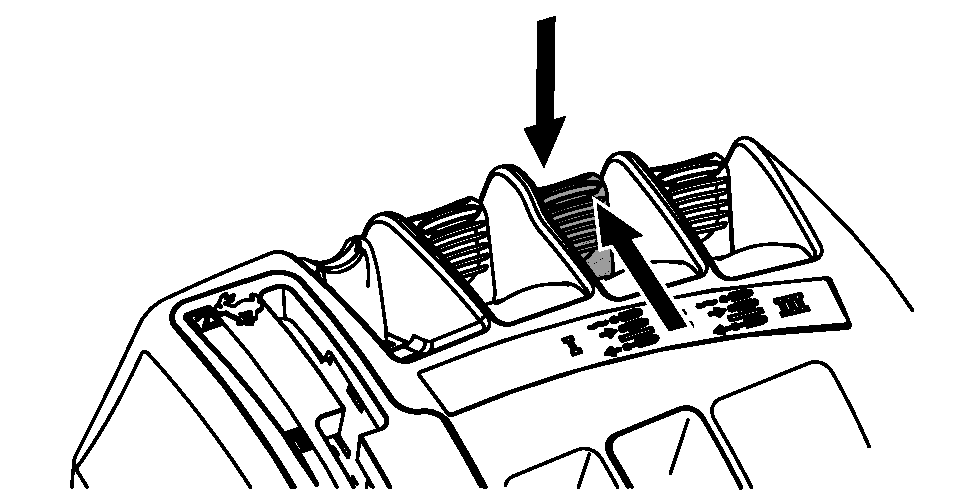

A82587-UN-15MAY14

Float

CAUTION: Relieve hydraulic pressure before connection.

NOTE: When connecting hydraulic hoses, ensure that hose tag matches tractor SCV symbol.

Extend and Retract symbols are on SCV cover. Refer to tractor operator’s manual for description of tractor controls.

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age, and exposure. Check hoses regularly. Replace damaged hoses.

IMPORTANT: Improper hose connection can damage motor seals. Connect the case drain hose before any other hose. Improper use of tractor SCV’s can damage motor seals. Move tractor SCV lever to float (not neutral) position to shut off blower.

Hydraulic Connection Identification
SCV Port	SCV Circuit	SCV Color	SCV Symbol	Implement Function	SCV Flow1	SCV Time1
	Case Drain	Yellow	“D”	Non-Pressurized Hydraulic Return—All Functions	N/A	N/A
A	I	Green	Extend	Opener Lift (Active Down Force System)	Maximum	Continuous “C”
B			Retract	Opener Lower (Active Down Force System)
C	II	Blue	Extend	Wing Fold	Maximum	90 seconds
D			Retract	Wing Unfold
E	III	Brown	Extend	Blower Hydraulic Return2	Variable	Continuous “C”
F			Retract	Blower Engage
			Float	Blower Disengage
