Chain Routings—Single-Rank Machine

A51311-UN-13APR05

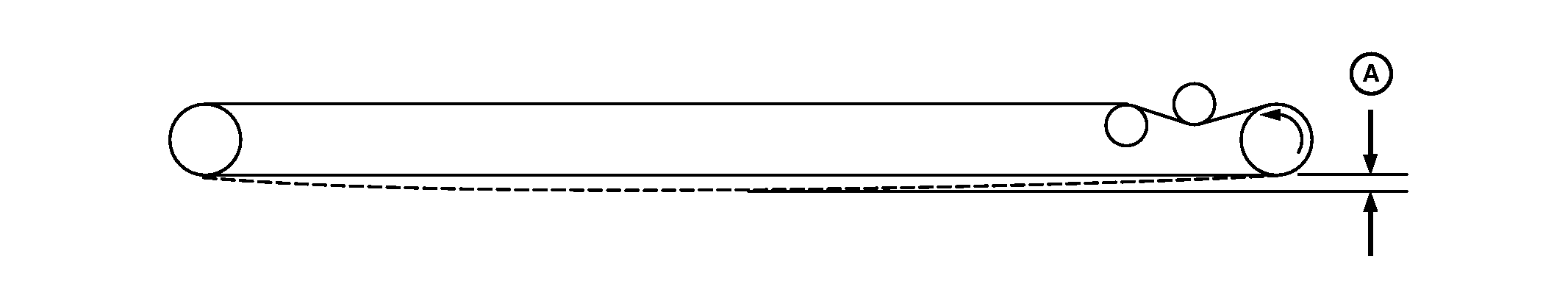

Ground Drive Arm Chain

A56176-UN-13APR05

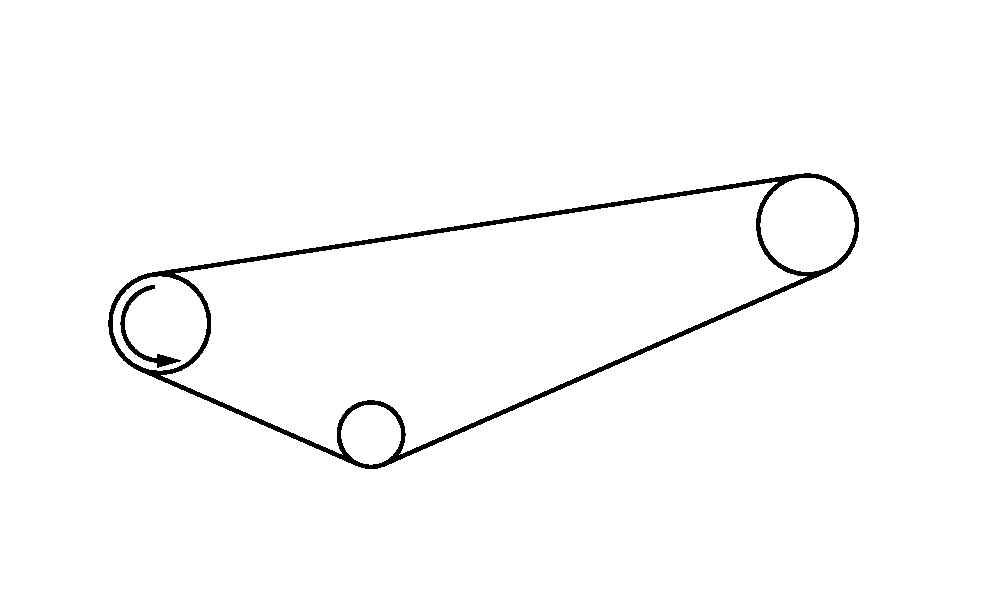

Transmission Input Chain

A51310-UN-13APR05

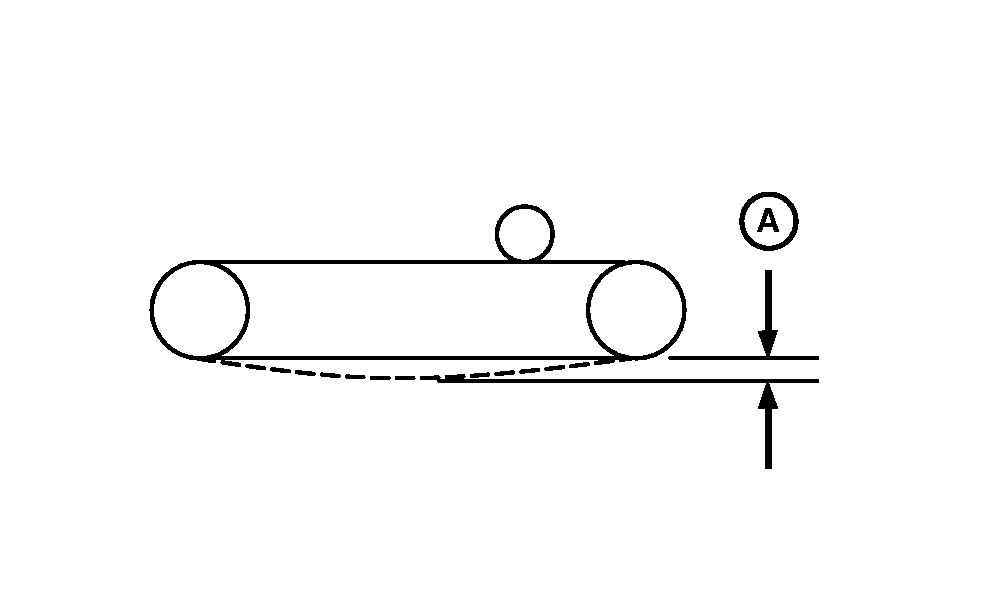

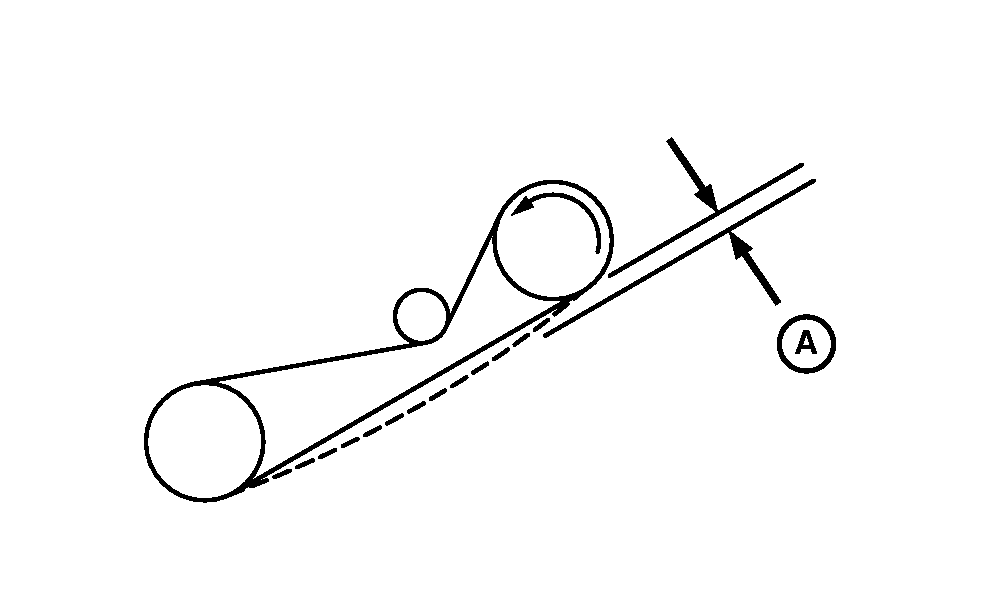

Agitator/Meter Input Chain

A56177-UN-13APR05

Transmission Output Chain—9.1 m (30 ft) and 10.7 m (35 ft) Only

A56178-UN-13APR05

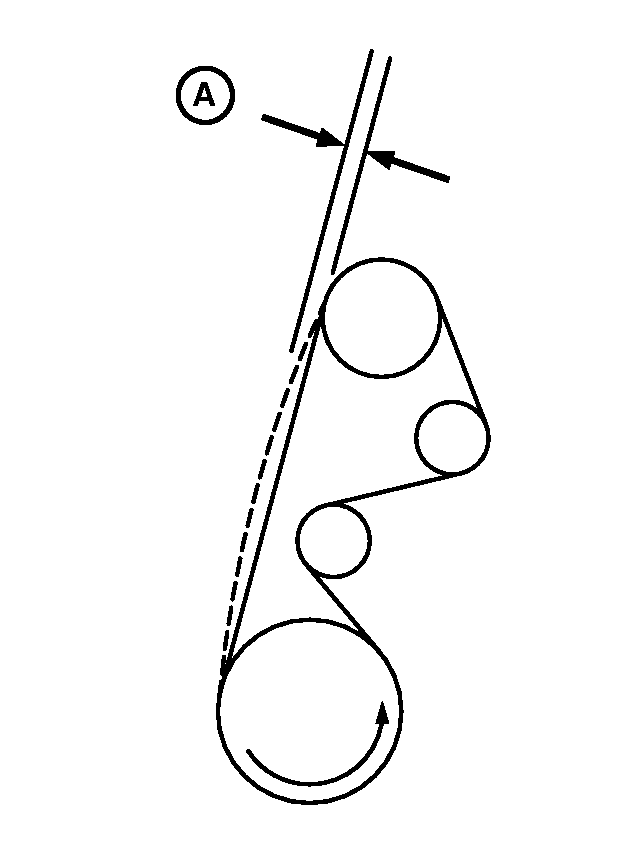

Ground Drive Vertical Chain

A - Adjust idler to permit 12 mm (1/2 in.) deflection of chain at longest span.
