Chain Routings—Two-Rank Machine

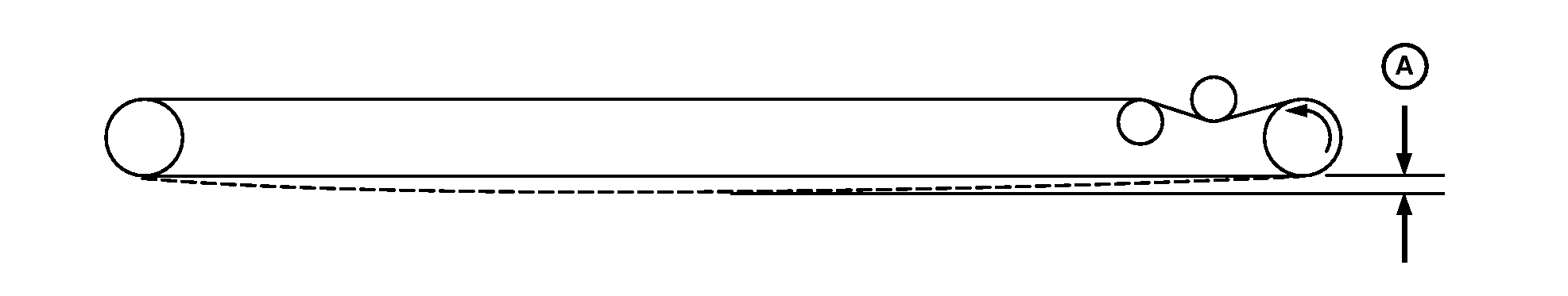

A56179-UN-15APR05

Ground Drive Arm Chain

A56474-UN-13JUN05

Ground Drive Vertical Chain

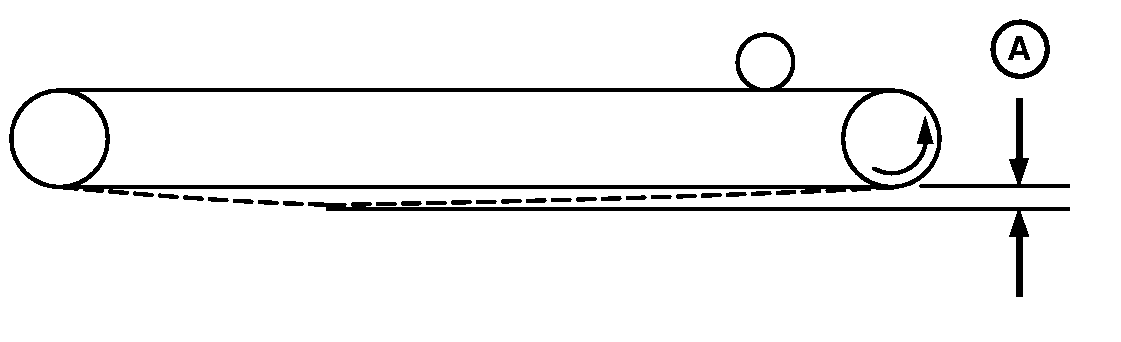

A56181-UN-13APR05

Transmission Output Chain—9.1 m (30 ft) and 10.7 m (35 ft) Only

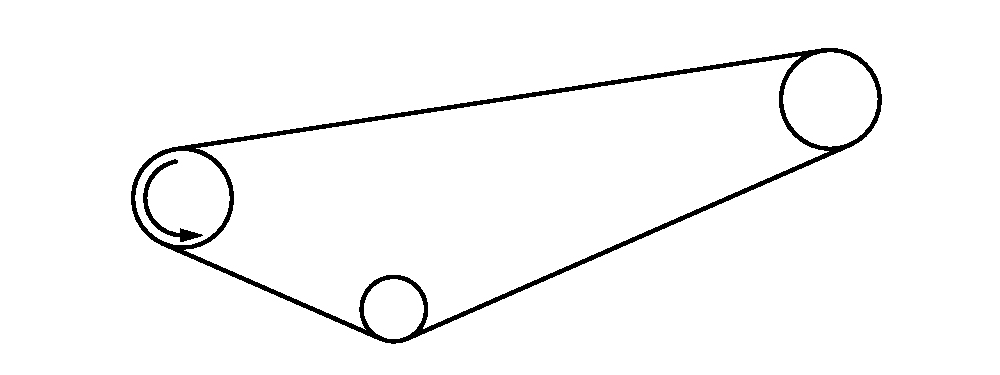

A56182-UN-15APR05

Transmission Input Chain

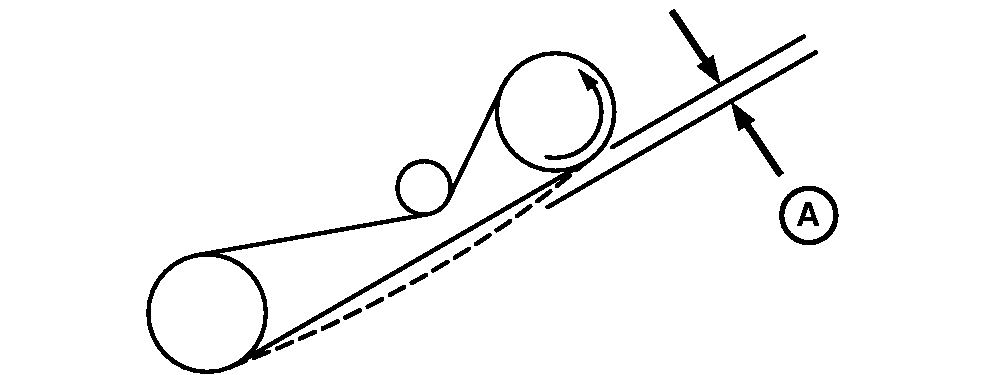

A51313-UN-15APR05

Agitator Input Chain

A - Adjust idler to permit 12 mm (1/2 in.) deflection of chain at longest span.
