Determine Tractor Drawbar and Implement Hitch Compatibility
IMPORTANT: Avoid machine damage. Match tractor drawbar and implement hitch. Refer to tractor operators manual for specific drawbar information.
Do not exceed static vertical load capacity of tractor drawbar. See Specifications section for vertical load and see tractor manual for drawbar limits and heavy duty supports.

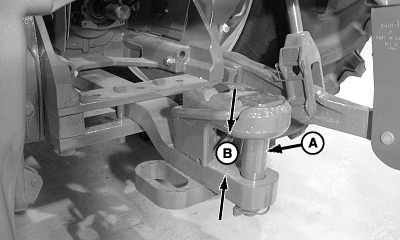

A60572-UN-08AUG07

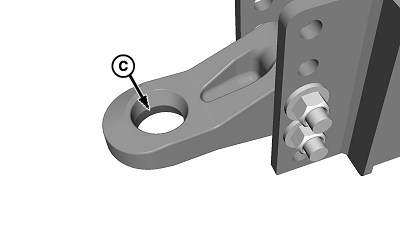

A60573-UN-08AUG07
A - Drawbar Pin
B - Drawbar Opening
C - Slot
Match tractor drawbar and implement hitch. The only exception is a category IV hitch used with a category III drawbar that has a 90 mm (3.54 in) opening. Never exceed vertical load limits.
|
Drawbar and Hitch Compatibility |
|||||
|
Tractor Drawbar |
Implement Hitch |
||||
|
Drawbar and Hitch Category |
Drawbar Pin (A) Diameter |
Drawbar Opening (B) |
Slot (C) Length |
Slot (C) Width (Minimum) |
Hitch Link Thickness |
|
III |
38 mm (1.50 in) |
70— 90 mm (2.75—3.54 in.) |
41—66 mm (1.61—2.60 in) |
41 mm (1.61 in) |
48 mm (1.89 in) |
|
IV |
51 mm (2.00 in) |
90 mm (3.54 in) |
55—70 mm (2.17—2.75 in) |
55 mm (2.17 in) |
50 mm (1.97 in) |
|
V |
70 mm (2.75 in) |
100 mm (3.94 in) |
73—85 mm (2.87—3.35 in) |
73 mm (2.87 in) |
60 mm (2.36 in) |
|
OUO6074,000102C-19-20150831 |
