Install Bridge Divider When Seeding Oats

A59112
A59112-UN-08JAN07

70 bu Tank, Left Side of Meter

A59132
A59132-UN-08JAN07

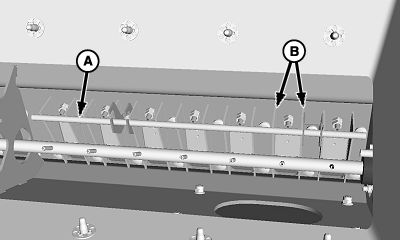

70 bu Tank, Right Side of Meter

A - Divider Assembly

B - Divider Plates

Install optional bridge divider when seeding oats to help avoid oats bridging over meter openings. See your John Deere™ dealer for proper oat divider.

Meter segments are different sizes. Match divider assembly (A) to meter segment. Divider assemblies have twice the number of divider plates (B) as a meter segment has openings. A meter segment with eight openings uses a divider assembly with 16 plates.

Install divider assembly with beveled edges against front side of meter. When properly installed, divider plates are aligned with edge of meter openings not in front of meter openings.

John Deere is a trademark of Deere & Company

OUO6435,00022EF-19-20070612
