Prepare Hydraulic System—Tractors With Electro/Hydraulic SCV Controls

1. IMPORTANT: Always check hydraulic oil with seeding tool in field transport position. Do not overfill tractor reservoir or it will overflow when wings are folded and press wheels are retracted.

   Check hydraulic oil level. Fill if necessary.

2.

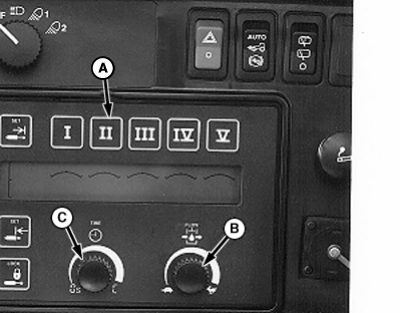

   A49244-UN-20MAY02

   A - SCV II Selector Button

   B - Flow Control Knob

   C - Time Detent Knob

   WING FOLD/UNFOLD: Press SCV II selector button (A) and turn flow control knob (B) to fast position.

---




3. Turn time detent knob (C) until display reads “19” seconds. If this is not enough time to fold or unfold the wings, the time detent button (C) may be set to constant. However, the tractor hydraulic pump will continue to operate after the fold/unfold cylinders have stopped moving. Shutting off pump by moving SCV lever to any position after lever has returned to neutral is recommended.

4.
   N48104-UN-01JUN94


   N48137-UN-18DEC01

   A - SCV I Selector Button

   B - Flow Control Knob

   C - Time Detent Knob

   D - SCV III Selector Button

   DEPTH CONTROL: Press SCV I selector button (A) and turn flow control knob (B) to fast position.

---




5. Turn time detent knob (C) until display reads “8” seconds. This can be increased or decreased, depending on actual time required to lift and lower machine.

6. BLOWER: Press SCV III selector button (D). Turn time detent knob (C) until display reads “constant”. Flow control knob (B) is used to set blower speed. Increase flow until (18 in) pressure is achieved on CCS tank pressure gauge.
