Adjust Seed Boots

IMPORTANT: Do not use top hole (C).

A62666
A62666-UN-17JUL08

N60058
N60058-UN-05APR02

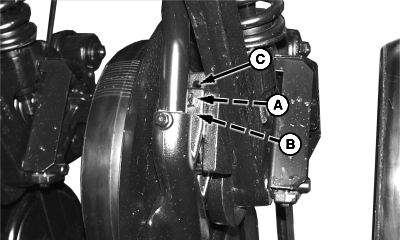

A - Center Hole

B - Bottom Hole

C - Do Not Use

D - Leaf Spring

Seed Boots are attached at hole (A) (as shown) for most planting conditions.

    Attach boot at bottom hole (B) when:

  • Shallow seeding at 25 mm (1 in) or less.
  • Planting in heavy-residue conditions.
  • Worn boot is used with new disk opener.
  • Higher speed planting causes inconsistent seed depth.

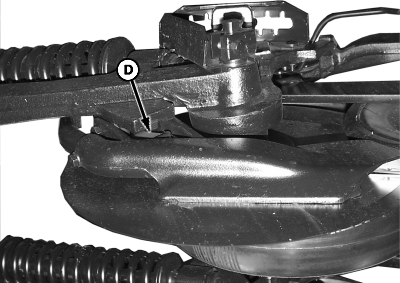

Leaf-spring (D) keeps seed boot against inside of disk opener for accurate seed placement.
