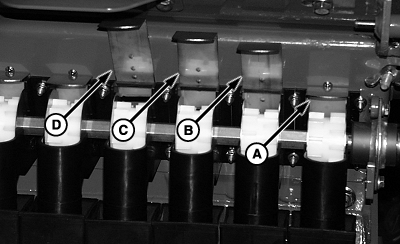

Set Metering Gates

A49102-UN-14MAY02

A - Closed

B - 1/3 Open

C - 2/3 Open

D - Full Open

• Closed: Used for runs that are closed.
• 1/3 open
• 2/3 open: Used for metering sorghum and milo.
• Open position is fully raised: Used for metering large seeds, such as soy beans, barley, oats, and rice. Full open is also used for wheat.
